Metal Punches and Dies for Tooling

Metal punches include forming punches, cold header recess punches, cut-off punches, and piercing punches. In cold heading operations, specialized punches shape fastener heads and indent specific drive recesses. Depending on the forming requirements, punches are engineered from durable tool steels such as M2, D2, H13, or S5 to withstand repetitive high-impact manufacturing cycles without premature failure.

The primary difference lies in their mechanical roles during metal forming. A punch is the moving tool component that applies direct force to shape, deform, or pierce the metal stock. In contrast, the die is the stationary component or assembly containing a contoured cavity that supports, cuts, or forms the metal into its designated dimensions.

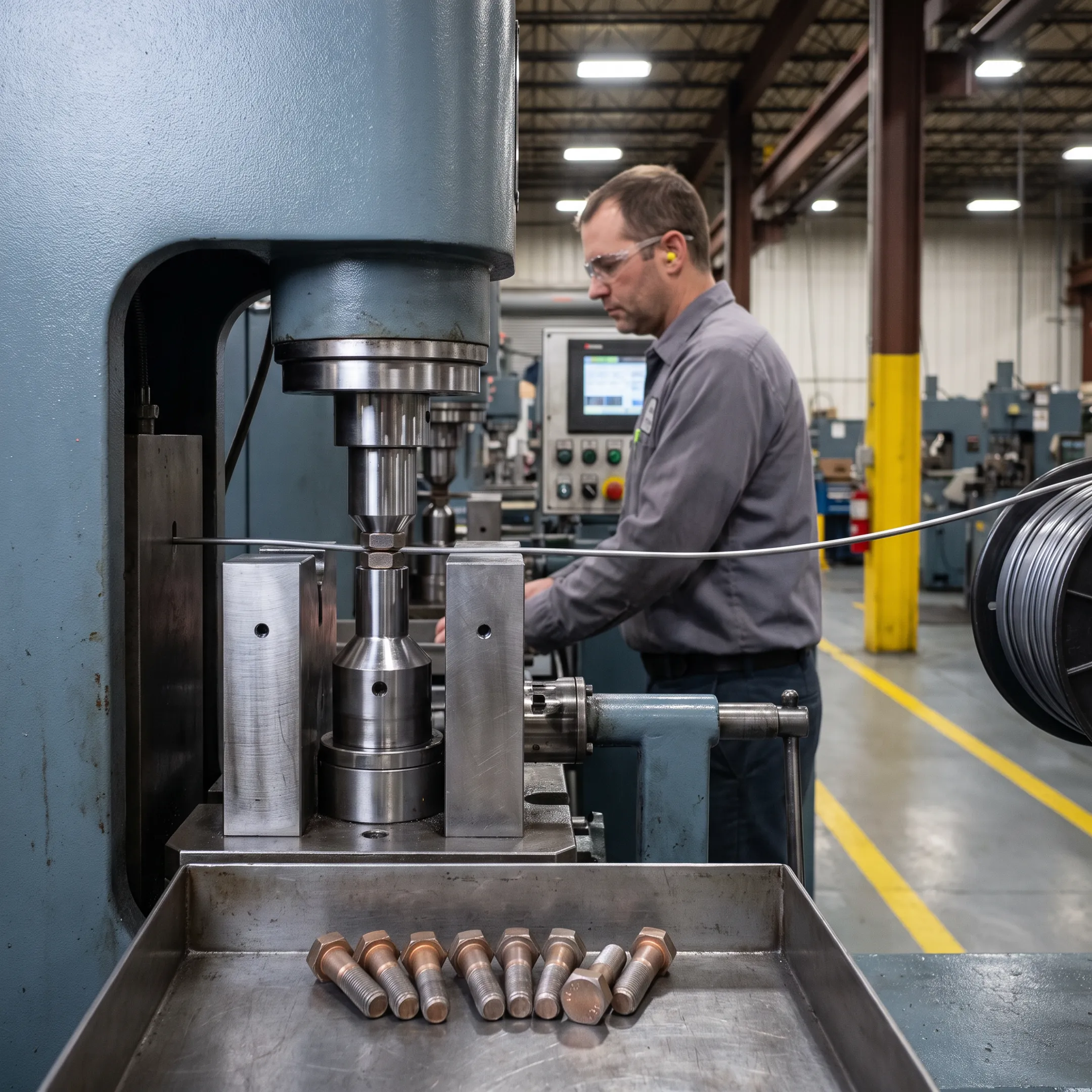

The punch and die method is utilized for manufacturing metal fasteners, component forming, stamping, and cold heading operations. It enables high-volume production of identical metal parts by forcing raw wire or sheet stock into precise shapes. This method supports fastener manufacturing, forging operations, and production of machine parts with tight structural integrity and repeatable dimensional tolerances.

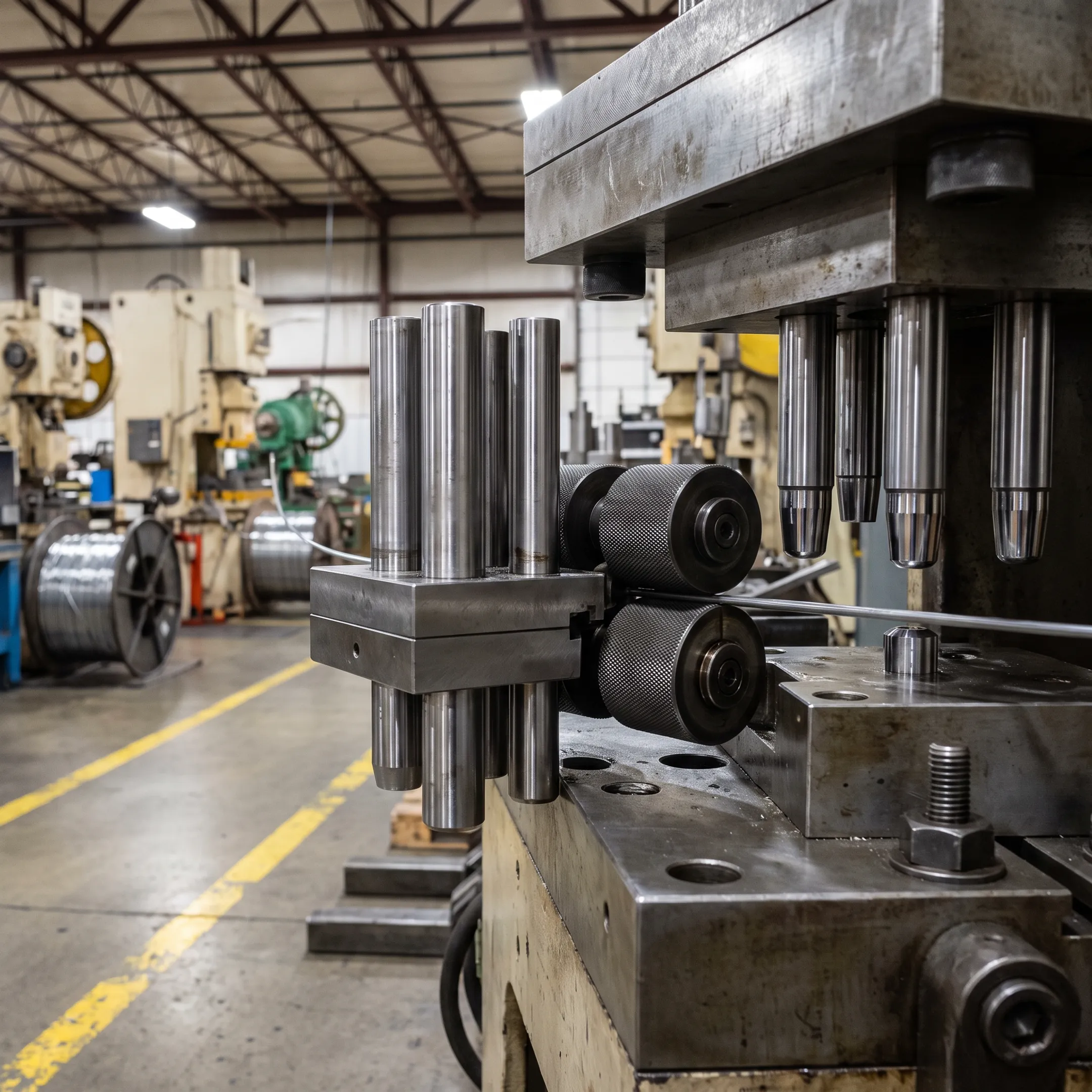

Die punching is a cold forming or stamping process where a punch presses raw metal into or through a matching die. This operation cuts, shears, or forms wire or sheet metal into desired geometries. In fastener production, die punching shapes bolt heads, blanks, and component details rapidly while maintaining consistent, defect-free parts across production runs.

The best tool depends on production volume, material thickness, and required hole geometry. For industrial stamping and component production, dedicated punch and die sets mounted in mechanical or hydraulic presses provide optimal speed and precision. Matched tooling crafted from tool steels ensures clean edges, minimizes burrs, and withstands repeated impact during continuous manufacturing operations.

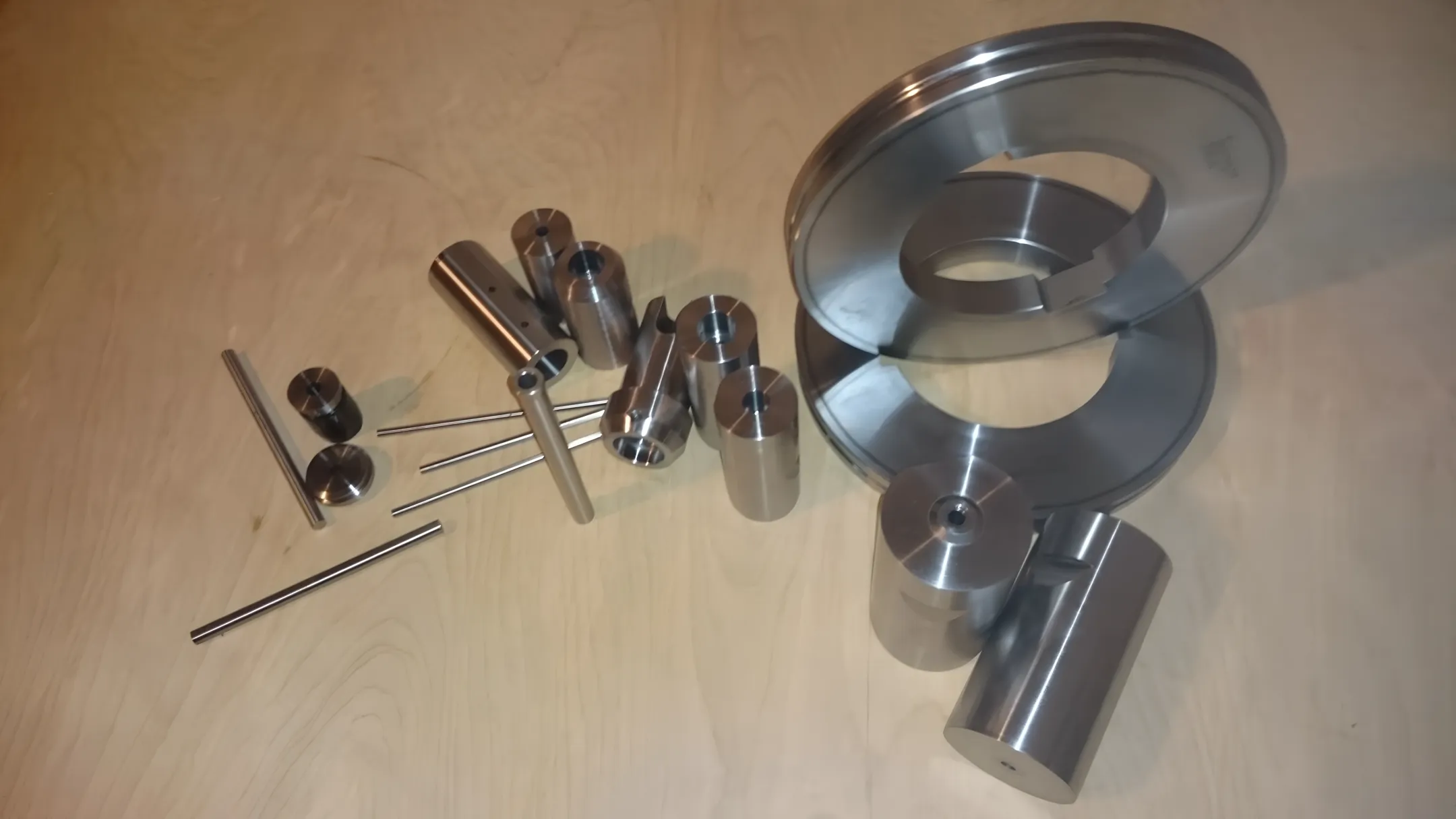

Common punching dies include cold heading dies, forging dies, wire draw dies, blanking dies, and forming dies. These tooling components can be supplied as individual inserts or complete die assemblies. Depending on the application, dies are designed to draw wire, cut stock to length, or shape complex fastener profiles under substantial forming pressures.
