If you're an engineer, designer, or manufacturing buyer evaluating precision turned parts, you've probably heard "Swiss machining" thrown around alongside CNC turning and screw machining as if they're interchangeable. They aren't. Understanding the mechanical difference matters when dimensional consistency, repeatability, and production reliability are on the line.
At Quality FORM Tools, holding tight tolerances and meeting deadlines are core to how we work with manufacturers across the fastener, tooling, and industrial sectors. This guide breaks down the machine layout, the workflow, where the process fits, and how to know when it's the right call — or when it isn't.
Key Takeaways
- Guide bushings support material near the cutting point, reducing deflection in slender or small-diameter parts.
- Swiss machines combine turning with drilling, threading, milling, and cutoff, often in a single cycle.
- The process suits small, precision-critical, repeat-production parts, not large or one-off jobs.
- Results and cost hinge on material consistency, bar-stock quality, and part geometry.
- Swiss machining isn't automatically the best fit for every turned part. The application should drive the decision.
What Is CNC Swiss Screw Machining?
"CNC Swiss screw machining," "Swiss machining," and "Swiss-type turning" all describe the same family of sliding-headstock processes. The terms get used loosely, but they point to one mechanical setup: bar stock fed continuously through a guide bushing while cutting tools remove material to produce repeatable, rotationally symmetric parts, often with milled or drilled features added along the way.
Two things define this process mechanically:
- The workpiece advances through a guide bushing rather than sitting stationary in a chuck.
- Cutting happens close to the supported section of the bar, right where the bushing holds it steady.
How It Differs From a Conventional CNC Lathe

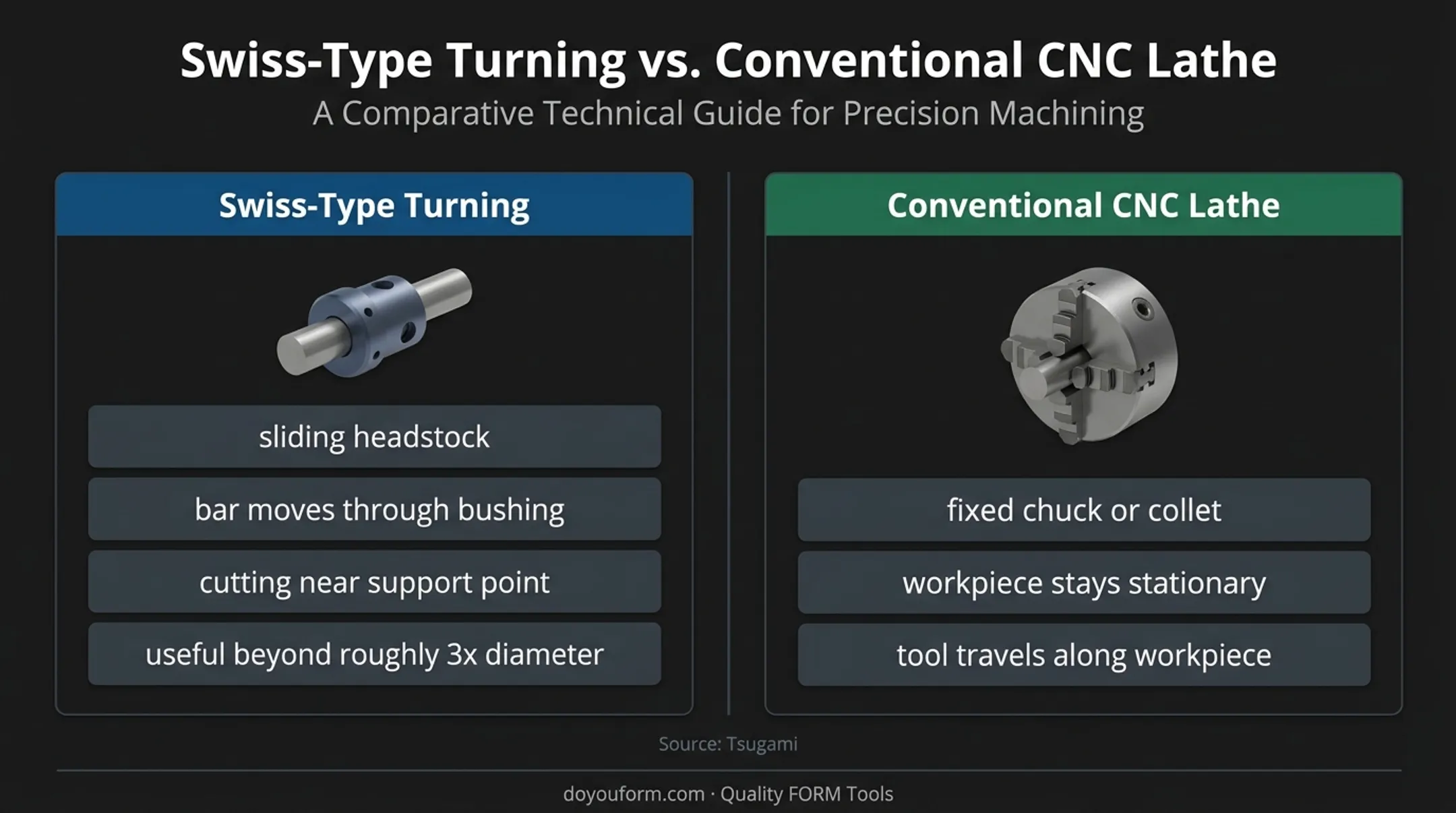

On a standard CNC lathe, the workpiece is held in a fixed chuck or collet and stays put while the tooling travels along it. On a Swiss-type machine, it's reversed: the headstock slides, feeding the bar through the bushing while the Z-axis motion comes from the material moving, not the tool. This distinction is what allows Swiss machines to cut so close to the support point in the first place.
According to a Modern Machine Shop article hosted by Tsugami, that close support becomes especially valuable once part length exceeds roughly three times the diameter. Treat that ratio as a useful guideline, not a hard rule.
Modern CNC Swiss machines share their operating principle with older automatic cam-operated screw machines, but the similarity ends at "supports bar stock near the cut." Cam machines rely on mechanical cams to control tool motion, which works well for high-volume runs of an unchanging design but stays inflexible. CNC controls replace the cams with programmable axes, so the same machine can run one part today and a completely different one tomorrow.
Swiss-type machines date to the late 1800s, when builders supplied Switzerland's watchmaking industry with tiny, precise components. That heritage explains the name; the modern CNC process is what drives today's manufacturing decisions on slender, high-precision turned parts.
Why CNC Swiss Screw Machining Is Used and Where It Is Applied
The Case for Guide-Bushing Support
Long, narrow, or small-diameter parts flex when too much stock extends unsupported beyond a chuck. That deflection shows up as:
- Chatter and vibration at the tool
- Dimensional drift on tight tolerances
- Scrap or rework on slender features
Guide-bushing support keeps the cutting zone close to where the bar is held steady. It limits deflection at the source instead of forcing you to program around it.
Doing More in One Cycle
Modern Swiss machines aren't limited to turning. Depending on configuration, they can combine:
- Outside turning and facing
- Threading and grooving
- Drilling and cross-drilling
- Live-tool milling
- Sub-spindle back-working and cutoff
Axis counts vary by machine. Star CNC's SD-26 lists up to ten controlled axes on its Type S configuration, and SME has documented nine-axis machines running two or three tools at once with counterspindle support. More axes usually mean more operations without repositioning the part. The real gain still depends on the machine and the part, not a fixed formula.
Where Swiss Machining Fits
Common applications include:
- Precision fasteners, pins, and shafts
- Small bushings and connectors
- Probes, fittings, and sensor components
- Medical components (bone screws, dental abutments, biopsy tool parts)
- Small-diameter aerospace and automotive turned parts
It is especially attractive for repeat orders and medium-to-high-volume work, where consistent cycle times and less manual handling offset setup and programming effort.
When Conventional Turning Makes More Sense
Swiss machining is not the default for every turned part. When the geometry does not need bushing support, conventional CNC turning is often the better fit for:
- Short, thick parts that don't benefit from bushing support
- Larger-diameter components
- Simple geometries with few features
- Low-volume runs or prototypes, where Swiss setup costs may not pay off
If you also need custom tooling, replacement machine parts, or other precision components alongside turned work, Quality FORM Tools sources that work through a network of domestic and overseas specialty shops. Share the print and volume targets so capability and fit can be confirmed up front.
How the CNC Swiss Screw Machining Process Works

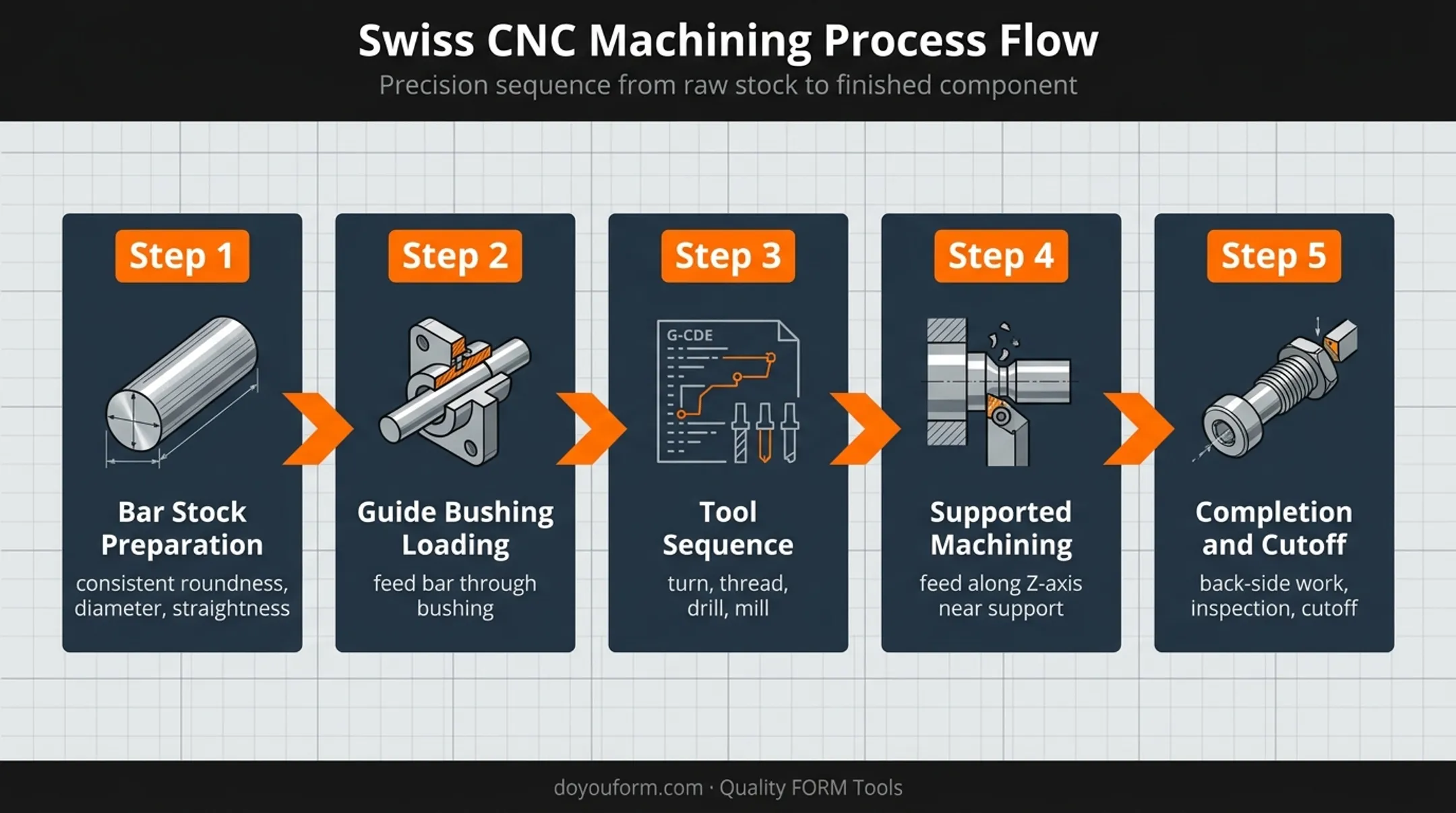

Swiss screw machining follows a tight sequence from bar to finished part. Here is the basic flow:
- Select and prep bar stock
- Load the bar through the guide bushing
- Program the tool sequence
- Feed material along the Z-axis and machine near the support point
- Finish or transfer the part, then cut it free from the bar
Step 1: Material Preparation and Loading
Bar stock needs consistent roundness, diameter, straightness, grade, and surface condition before it reaches the bushing. A bar that is out of round or bowed will bind or wobble as it feeds, which hurts tolerance and tool life.
Straightness standards for cold-finished steel bar are covered under ASTM A108. That spec applies to steel, not every metal or plastic run on a Swiss machine. Confirm material specs against the machine, guide-bushing setup, and the drawing’s dimensional and surface requirements before the job starts.
Step 2: Sliding Headstock and Guide Bushing
The sliding headstock advances and retracts the bar while the guide bushing holds it steady right next to the cutting tools. Picture supporting a thin rod at the exact spot where you apply force: the closer the support sits to that load, the less the rod bends. That single idea is the guide bushing’s mechanical advantage.
Step 3: The Core Machining Cycle
Once the bar is supported and fed into position, the machine runs the operations the part needs:
- Outside turning and facing to set diameters and end surfaces
- Grooving and threading for functional features
- Drilling or boring for internal geometry
- Cutoff to separate the finished part from the bar
- Live-tool milling or cross-drilling (where equipped) for off-axis features
Tool layout, spindle setup, and any sub-spindle work depend on the machine and the part. No two Swiss jobs run identically.
Step 4: Part Transfer and Completion
On machines with a sub-spindle, that spindle can support or retrieve the part for back-side work before final cutoff and ejection, which reduces manual handling. Even a part that leaves the machine nearly complete often still needs inspection, deburring, cleaning, heat treatment, or plating.
A Swiss machine can run unattended for hours. Holding tolerance still depends on disciplined process control:
- CNC programming and tool offsets
- Workholding and coolant strategy
- Chip control
- In-process checks
- Final inspection
Key Factors, Common Issues, and When Swiss Machining May Not Be Appropriate
Decision Factors to Weigh
- Part geometry: diameter, length-to-diameter ratio, cross-holes, threads, and back-side features determine whether bushing support adds real value.
- Materials and bar stock: machinability, work hardening, chip formation, and screw-machine-quality stock all shape the outcome.
- Tolerances and finish: flag only functionally critical dimensions; tight specs everywhere raise cost without adding value.
- Production volume and economics: weigh setup, programming, tooling, and secondary ops instead of assuming Swiss is automatically cheaper.
- Equipment dependencies: guide-bushing fit, bar feeder compatibility, tool access, and chip evacuation must line up for a stable run.
Common Misconceptions
Swiss machining isn't limited to literal screws; the name is a historical holdover. "CNC" doesn't mean every part finishes in one setup. A tight machine tolerance spec also doesn't guarantee that tolerance on every feature of every part.
Problems That Show Up in Practice

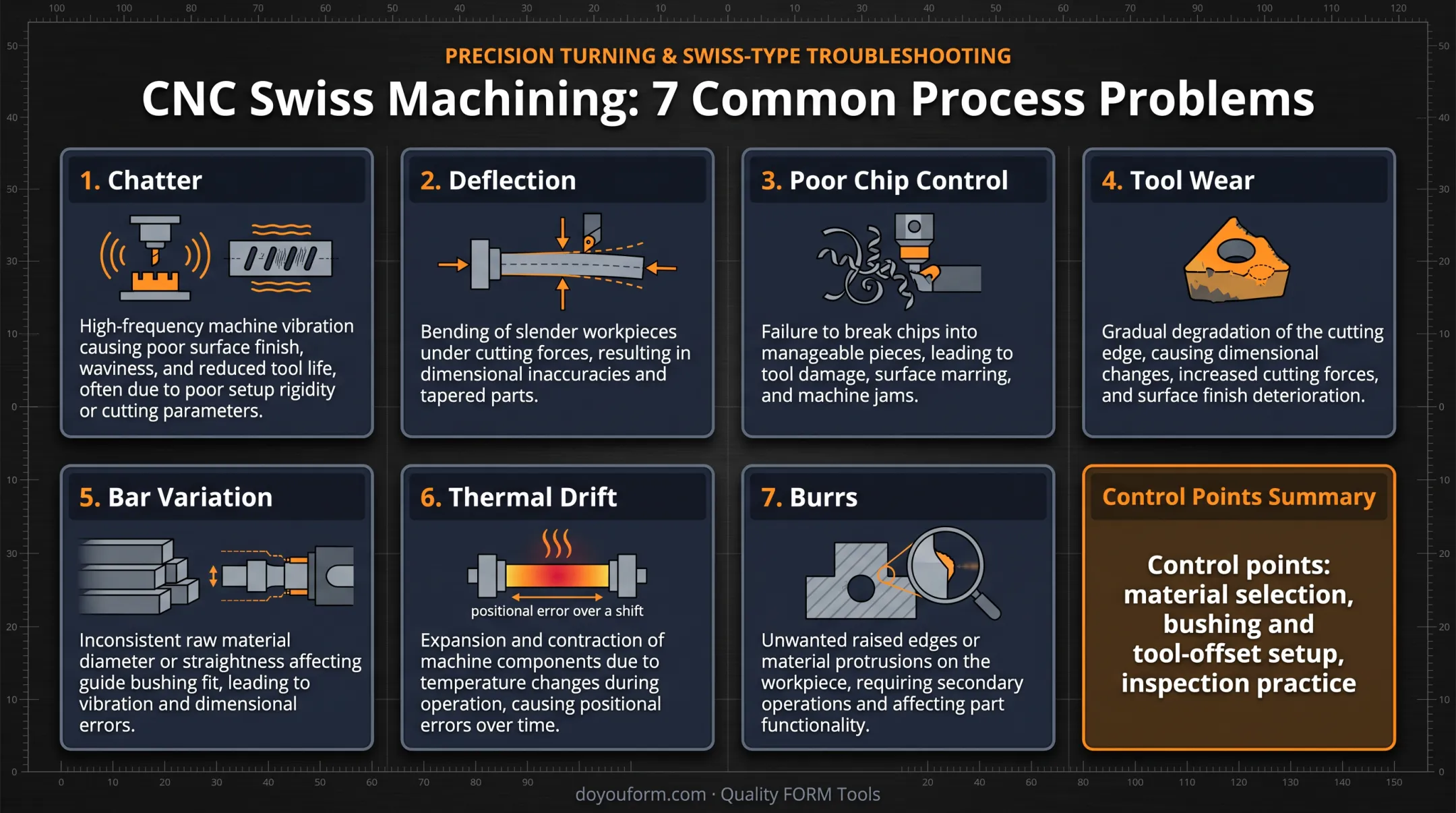

Chatter, deflection, poor chip control, tool wear, bar-stock variation, thermal drift, and burrs are the usual suspects. A 2024 study published in the Journal of Manufacturing Processes found that internal and external heating caused measurable tool-to-workpiece positional error on tested Swiss-type lathes, even on well-programmed machines over a shift.
Most of these issues trace back to material selection, bushing or tool-offset setup, or gaps in inspection practice.
When to Consider an Alternative
- Conventional CNC turning for short or larger-diameter parts
- CNC milling for predominantly prismatic geometry
- Automatic screw machining for stable, high-volume designs suited to dedicated tooling
- Another process entirely for very low-volume prototypes
Pre-Quote Checklist
Before requesting a quote, have ready:
- Part drawing and 3D model
- Material and heat-treatment requirements
- Annual volume and order quantity
- Critical tolerances and surface finish
- Inspection and finishing requirements
- Delivery expectations
Quality FORM Tools works with fastener manufacturers, forging shops, and OEM buyers who need precision components, tooling, or replacement parts sourced correctly the first time. Send drawings and requirements for an application review to confirm whether Swiss machining or another process is the right call.
Conclusion
CNC Swiss screw machining is a sliding-headstock, guide-bushing process built for small, precise, repeatable parts cut from bar stock, frequently combining multiple operations in a single cycle. Its real value shows up when the machine's support and automation advantages actually match the part's geometry, material, tolerance, and volume requirements.
Swiss machining is not automatically the right fit for every turned component. A qualified manufacturing partner should review the drawing, the material, and the production plan before recommending it over an alternative — not after tooling has already been cut.
Frequently Asked Questions
What are the key differences between CNC machines and Swiss screw machines?
CNC is a broad category covering any computer-controlled machine tool. A Swiss screw machine is a specialized CNC (or older automatic) turning machine built to support bar stock near the cutting point for small, precise parts.
What is the difference between Swiss screw machining and conventional CNC turning?
Swiss machining uses a sliding headstock and guide bushing to support the bar near the cut; conventional CNC turning holds the part in a fixed chuck while the tool travels. Swiss suits slender parts; conventional turning suits shorter, thicker ones.
What parts are best suited for CNC Swiss screw machining?
Small-diameter, slender, cylindrical, or feature-dense parts — think pins, shafts, threaded components, and connectors — that need repeatable results and benefit from multiple operations in one setup.
How does a guide bushing improve Swiss machining?
It supports the workpiece close to the cutting tool, which limits deflection, vibration, and dimensional variation that would otherwise occur with unsupported bar length.
Is CNC Swiss screw machining cost-effective for prototypes or low-volume parts?
Not usually. Setup and programming costs can outweigh the benefits for one-off or very low-volume work, though part complexity and secondary-operation savings can shift that calculation.
What materials can be used in CNC Swiss screw machining?
Common choices include brass, stainless steel, and various machinable metals, along with select plastics. Material grade, bar-stock consistency, and chip behavior all affect what's actually achievable on a given job.
