Introduction
Ram EDM and wire EDM both remove metal using controlled electrical sparks instead of a cutting tool touching the part. That's where the similarity ends.
Each process solves a different geometry problem, and picking the wrong one shows up fast: mismatched electrode costs, missed tolerances, surface finish that needs rework, or a lead time nobody budgeted for.
A shop that specs wire EDM for a blind pocket, or ram EDM for a simple through-slot, ends up paying for a mistake in both time and money.
This guide breaks down how each process works, where each one earns its keep, and how to decide between them for dies, molds, punches, fastener tooling, and replacement components used in production.
Key Takeaways
- Ram EDM (sinker) burns cavities, blind features, and 3D details with a shaped electrode.
- Wire EDM cuts precise through-profiles with a continuously fed wire.
- Both cut hardened conductive metals with almost no mechanical force; neither works on nonconductive stock.
- Choose by geometry, access, thickness, finish needs, and volume.
- Mixing through-cuts with blind cavities or tight tolerances? Get an application review before you quote.
Ram EDM vs. Wire EDM: Quick Comparison
Both processes strip material through repeated electrical discharges between an electrode and a conductive workpiece. The Society of Manufacturing Engineers describes this as thermal erosion in a dielectric fluid.
Beyond that shared mechanism, the two diverge sharply.

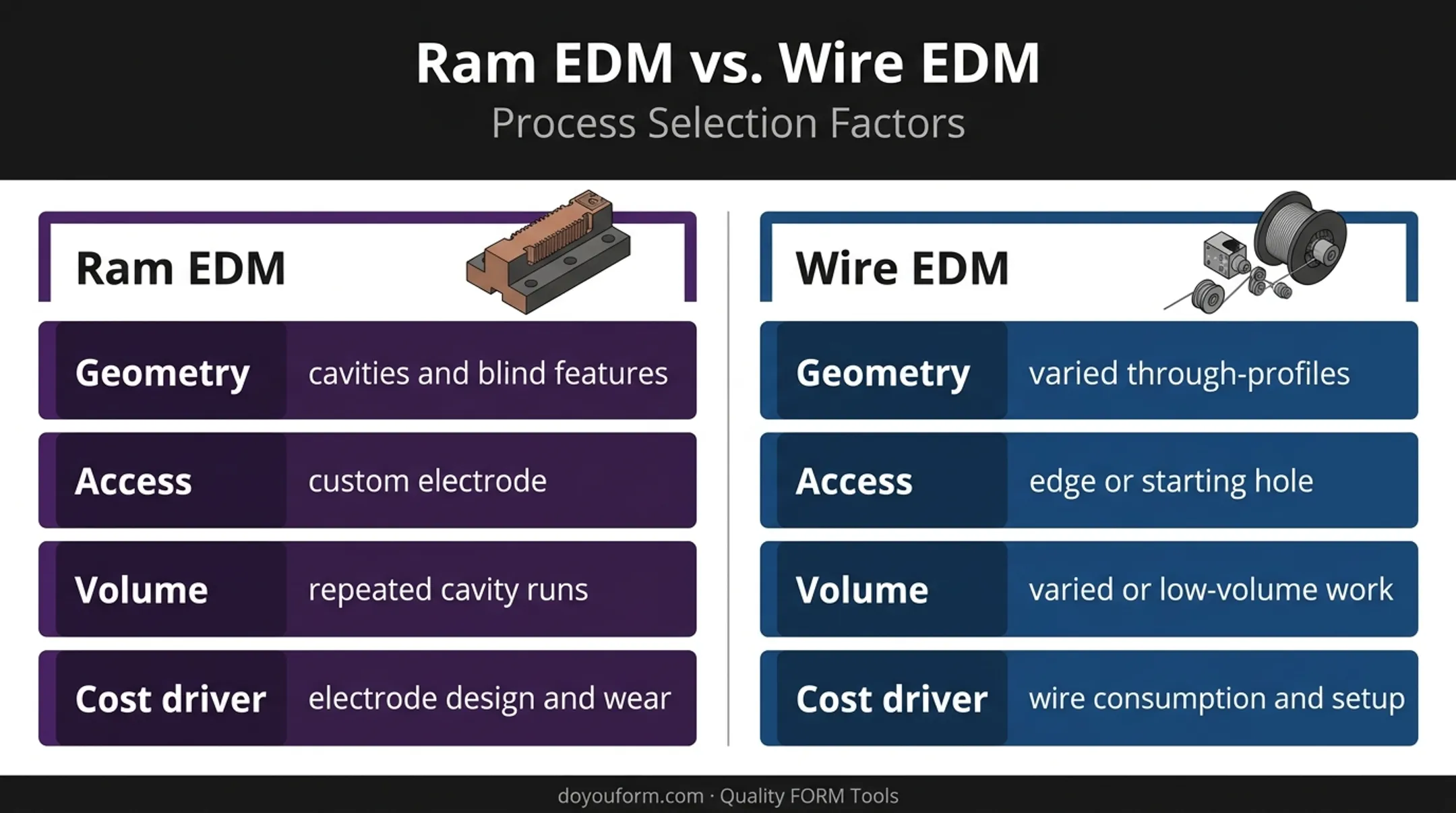

| Factor | Ram EDM | Wire EDM |
|---|---|---|
| Electrode | Custom-shaped graphite or copper electrode forms the inverse cavity | Continuously fed brass or zinc-coated wire, consumed during the cut |
| Motion | Electrode plunges to a controlled depth | Wire travels a programmed path, usually starting at an edge or drilled hole |
| Best geometry | Blind cavities, internal splines, deep ribs, 3D impressions | Two-dimensional profiles, punches, plates, through-cuts, tapered walls |
| Dielectric | Oil-based fluid, also used for flushing | Deionized water, flushed continuously around the wire |
| Recurring cost driver | Electrode design, fabrication, and wear | Wire consumption, setup, and skim passes for finish |
Typical applications at a glance:
- Ram EDM: injection molds, stamping dies, forging dies, blind tooling details
- Wire EDM: blanking punches, die inserts, precision plates, through-cut profiles
Neither process is inherently cheaper. A shaped ram electrode costs more upfront but can be reused across a production run. Wire EDM avoids electrode fabrication entirely but adds machine time for skim passes when finish tolerances get tight.
Cost comes down to the part's geometry, order quantity, and tolerance band—not a blanket assumption about which method is less expensive.
What is Ram EDM?

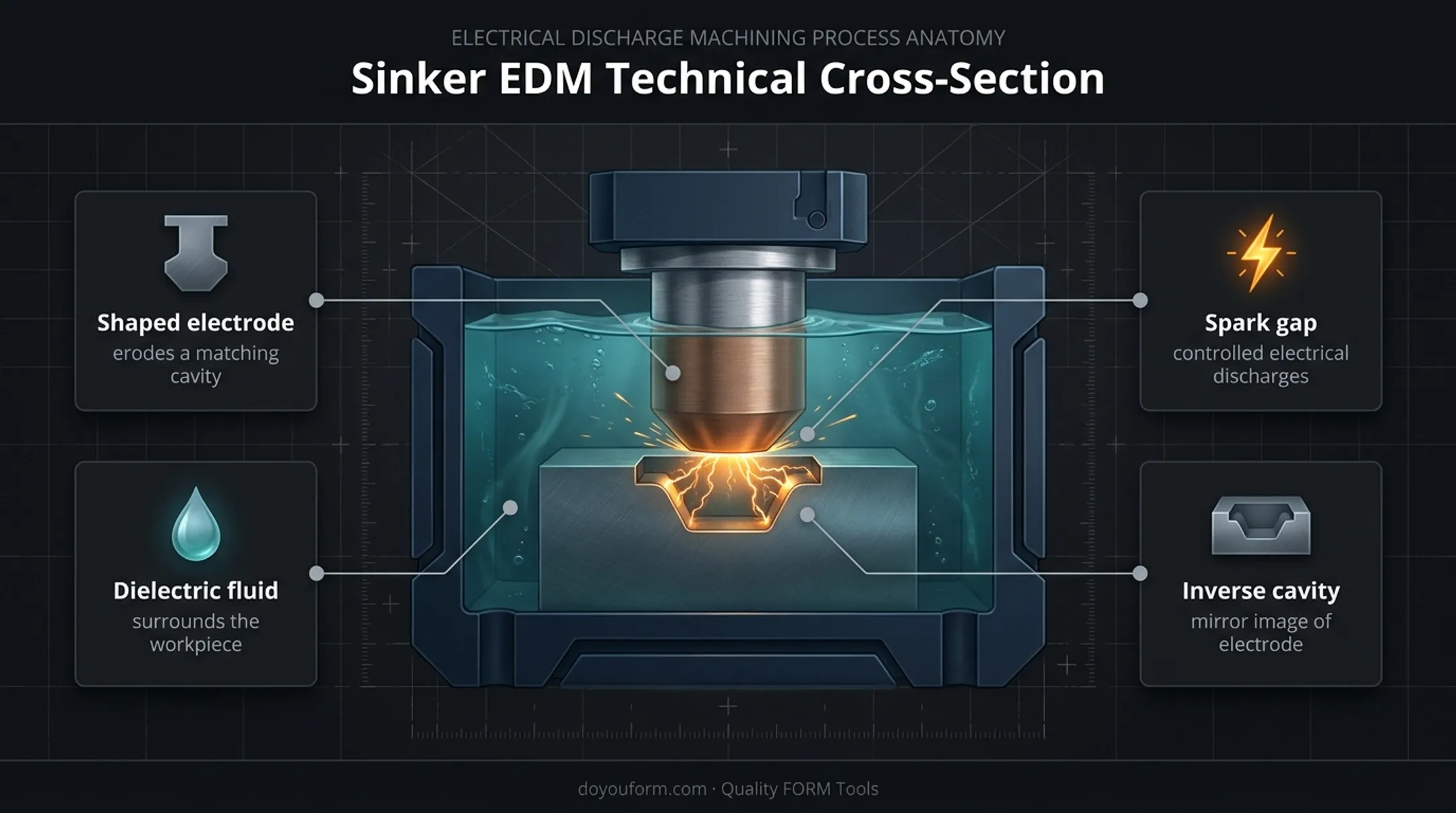

Ram EDM goes by several names (sinker EDM, die-sinking EDM, or plunge EDM), but they all describe the same idea: a shaped electrode erodes a matching cavity into a conductive workpiece.
The process runs in a consistent sequence:
- Secure the workpiece and submerge or surround it in dielectric fluid.
- Position the electrode with a controlled spark gap above the target area.
- Generate repeated electrical discharges to erode material.
- Flush eroded debris out of the gap continuously.
- Advance the electrode to the required depth, swapping electrodes for roughing and finishing passes as needed.
The resulting feature is a mirror image of the electrode. That makes electrode design and fabrication a real part of the process plan, not an afterthought.
Because the material removal is electrical rather than mechanical, ram EDM handles hardened tool steels with minimal cutting force, a genuine advantage for materials that fight conventional milling or grinding.
Limitations worth planning around:
- Custom electrodes add cost and lead time
- Electrode wear can affect dimensional consistency over long burns
- Only conductive workpieces qualify
- Deep or complex cavities may need multiple finishing passes and careful flushing
Use Cases of Ram EDM
Ram EDM fits naturally into tooling built from M2, D2, H13, or S5 tool steels: injection molds, stamping dies, forging dies, and cold header tooling with deep ribs, blind keyways, or internal splines. It typically enters the workflow after electrode and workpiece designs are approved, during cavity production, and before polishing, coating, or assembly.
Michigan-based Viking Tool & Engineering ran into exactly this kind of bottleneck: slow burns and difficulty forming deep, narrow mold ribs were slowing production. After bringing in a newer sinker EDM machine to address those details, the shop reported using 50% fewer graphite electrodes on that work.
That figure is shop-specific—tied to one machine and burn strategy—not a number to plug into every quote. It still shows how much electrode strategy can change cost and cycle time on a complex cavity job.
What is Wire EDM?
Wire EDM, also called wire-cut EDM, uses a moving wire and controlled sparks to cut a programmed profile through a conductive workpiece. Instead of shaping an electrode, the machine feeds fresh wire continuously as it travels the cut path under CNC control.
The typical sequence:
- Thread the wire and establish the workpiece-to-wire relationship
- Move wire guides along the programmed path under CNC control
- Generate discharges across the spark gap
- Feed fresh wire continuously as the used portion is consumed
- Flush debris with deionized water at the cut zone
Because the wire never physically contacts the part, cutting forces stay minimal. That matters for thin, delicate, or hardened components prone to deformation under conventional machining.

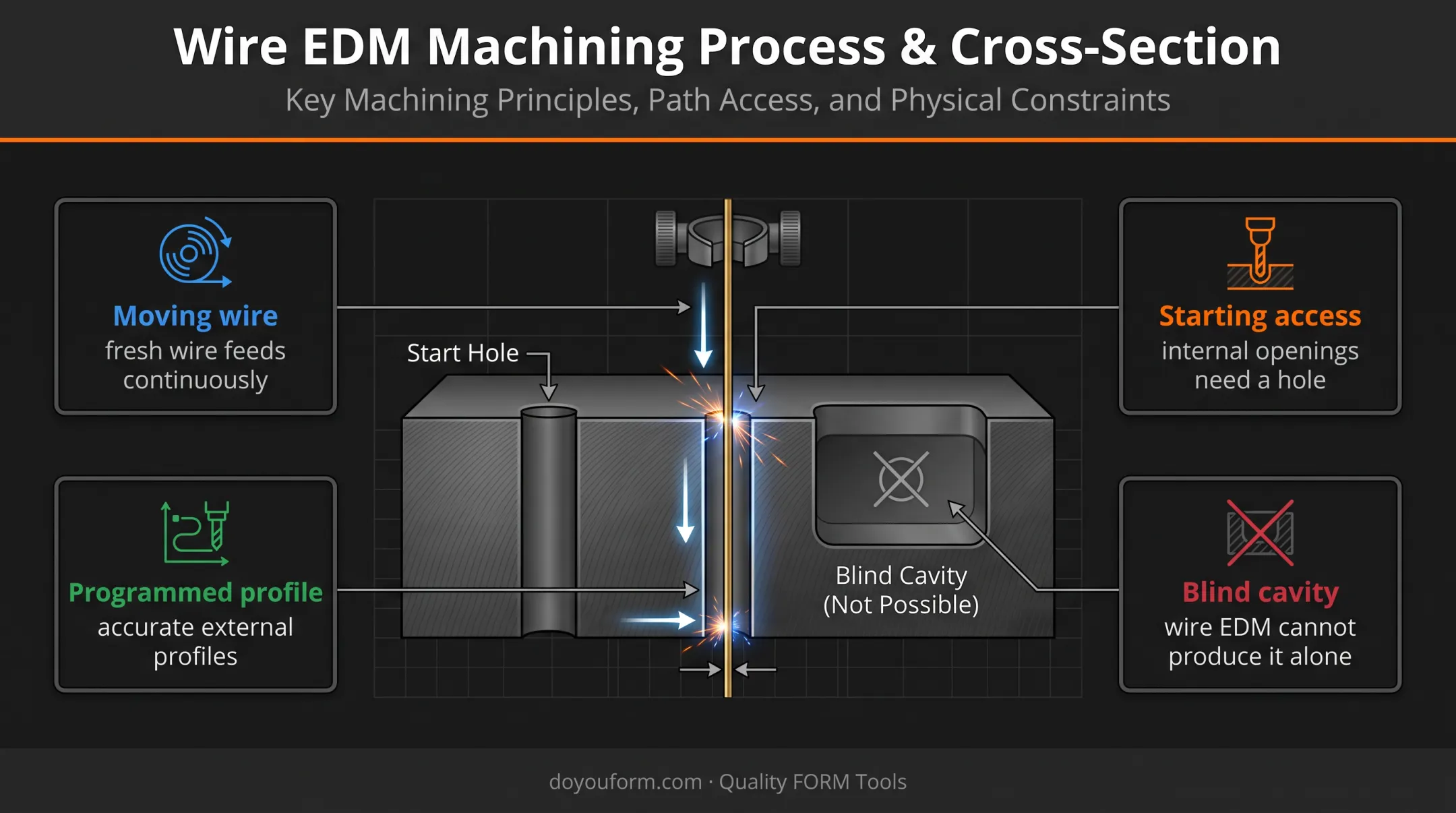

Wire EDM excels at accurate external profiles, punches, dies, inserts, shims, and fine slots. Internal openings are possible too, but only if they start from a drilled or pre-existing hole. A fully enclosed blind cavity isn't something wire EDM can produce on its own. Thicker sections also affect cutting time, taper control, and flushing behavior.
Use Cases of Wire EDM
Wire EDM is a common choice when the deliverable is a clean through-profile:
- Blanking punches, extrusion dies, and stamping inserts
- Precision plates and replacement machine components
- Prototype tooling and low-volume replacement parts
- Production tooling outsourced so in-house tool rooms stay on new development
That pattern is common across fastener forming, stamping, forging, automotive, and general industrial manufacturing.
Feinstanz AG, a fine-blanking toolmaker, cuts punch and die contours from hardened tool steel plates several centimeters thick. It reports that the wire-cut contours need no further machining afterward.
When the shop upgraded machines, the newer unit ran about 30% faster than the older one. That comparison is between two wire machines, not a wire-versus-sinker benchmark, but it confirms wire EDM can deliver a finished contour without secondary work when the geometry allows it.
Ram EDM vs. Wire EDM: What Is Better?
Neither process wins by default. The right choice hinges on whether the part needs a cavity or a through-profile, how the feature gets accessed, and what production and inspection demand.
Choose Ram EDM when the part needs:
- Blind cavities or internal recesses
- Deep ribs or three-dimensional impressions
- A feature only reachable with a custom electrode
Choose Wire EDM when the part needs:
- A precise through-cut or intricate planar profile
- Narrow slots, punches, or die inserts
- Access from an edge or a starting hole
Beyond geometry, confirm the fundamentals:
- Electrical conductivity and hardness
- Workpiece thickness and feature depth
- Corner sharpness, taper, and minimum radii
- Whether the design can accommodate a starting hole
On the commercial side, weigh electrode design and wear against wire consumption, setup, programming, and any secondary operations either process might still require.
Production volume shifts the math too. A custom electrode pays for itself across repeated cavity runs. Wire EDM often makes more sense for varied profiles or outsourced low-volume replacement work. Get a process-specific quote rather than assuming one method is universally cheaper.
RFQ checklist to speed up quoting:
- Part print or CAD model
- Material and heat-treatment condition
- Quantity required
- Critical dimensions and tolerances
- Surface-finish requirements
- Starting-hole or edge-access details
- Inspection requirements
- Delivery expectations
Manufacturers sourcing custom tooling, stamped or forged replacement parts, cold header tooling, or precision machine components can send that information to Quality FORM Tools to work through the right manufacturing or sourcing path for the job.
Real-World Examples
Two documented cases show how geometry, not a generic technology preference, drives the process decision.
Viking Tool & Engineering faced slow burns and difficulty producing deep, narrow mold ribs, a classic blind-cavity problem. After upgrading its sinker EDM equipment and burn approach, the shop reported cutting graphite electrode usage in half.
The trigger was the cavity's depth and internal detail, not a preference for ram EDM over wire.
Feinstanz AG needed hardened-steel punch and die contours accurate enough to skip further machining. That through-profile job also carried tight finish requirements. Wire EDM delivered contours ready to use straight off the machine, and a newer wire machine cut the job roughly 30% faster than its predecessor.
The takeaway: Cavity and blind-feature problems point toward ram EDM. Accessible through-profile problems point toward wire EDM.
Manufacturers needing custom tooling, replacement machine parts, or stamped and forged components can contact Quality FORM Tools for a review of their specifications and production needs.
Conclusion
Ram EDM generally wins for shaped cavities and three-dimensional blind features. Wire EDM generally wins for accurate through-profiles and intricate cutout geometry. The better process still depends on the specific part in front of you.
Before requesting a quote, review these factors together:
- Material conductivity and feature access
- Workpiece thickness
- Tolerances and finish requirements
- Quantity and electrode needs
Complete drawings, models, material specs, and inspection requirements up front save time and cost once the job hits the shop floor. Share those details with Quality FORM Tools when you need wire or sinker EDM on tooling or precision components, and the quote can reflect the right process from the start.
Frequently Asked Questions
What is sinker EDM and how does it work?
Sinker EDM (also called ram EDM) uses a shaped electrode to erode a matching cavity into a conductive workpiece through controlled electrical discharges. The electrode's shape becomes the inverse impression left in the part.
Is wire EDM faster than waterjet?
Speed depends on material, thickness, geometry, and required tolerance. There is no universal winner. Waterjet often suits looser-tolerance cuts, while wire EDM handles tighter precision requirements better.
What does EDM mean in manufacturing?
EDM stands for Electrical Discharge Machining. It removes material through repeated controlled electrical sparks between an electrode and a conductive workpiece, rather than direct mechanical cutting contact.
