A high-strength fastener is really an engineered system: material, mechanical properties, dimensions, environment, and joint design all have to line up. Picking the highest available grade without checking those factors often causes more problems than it solves.
This guide walks through bolt and nut grades under SAE, metric, and ASTM systems, how to select fasteners for specific applications, correct installation practices, and what to look for when sourcing fasteners or the tooling used to manufacture them.
Key Takeaways
- No single bolt grade wins every job: strength, fatigue life, temperature, and corrosion all trade off
- Select bolts, nuts, washers, and coatings as one compatible assembly, not separate parts
- Verify current standards and manufacturer specs before using high-strength fasteners in critical joints
- Overspecifying strength can cause brittleness, galling, or fit issues when it doesn't match the base material
Common Types and Materials Used in High-Strength Fasteners
Bolts, screws, studs, threaded rods, nuts, and washers all serve different structural roles. Choosing the wrong component type causes as many failures as choosing the wrong grade.
Matching the Component to the Joint
- Bolts work best where you need a removable clamping connection with access to both sides
- Screws thread directly into the mating material when a separate nut is impractical or unnecessary
- Studs suit blind-hole applications or joints requiring frequent disassembly on one end
- Threaded rod handles long-span tension applications where standard bolt lengths won't reach
- Nuts and washers distribute clamping load and prevent thread damage against the mating surface
Access, clamping load, loading direction, and how often the joint gets serviced all determine which component fits.
Material Trade-Offs
| Material | Strength Profile | Best Suited For |
|---|---|---|
| Carbon steel (SAE Grade 2) | Baseline strength, lower cost | Light-duty, non-critical joints |
| Alloy steel (SAE Grade 5, 8) | Higher tensile and yield strength via heat treatment | Machinery, automotive, structural components |
| Stainless steel (ASTM F593) | Corrosion resistance; strength varies by group | Chemical exposure, food-grade, marine environments |
Portland Bolt's technical data identifies SAE Grade 8 as medium-carbon alloy steel with minimum tensile strength around 150 ksi. That rating comes from quenching and tempering, a heat treatment that changes the steel's microstructure rather than its base chemistry.
Heat Treatment and Coatings
Quenching and tempering (or age hardening for some stainless alloys) is what separates a Grade 8 bolt from a Grade 2 bolt of identical dimensions. The process increases hardness and tensile strength but can reduce ductility if overdone.
Zinc plating, hot-dip galvanizing, and zinc-nickel systems improve corrosion resistance and change friction during tightening, but they don't add strength. High-strength electroplated fasteners also carry hydrogen embrittlement risk, which is why ASTM specifications for these coatings include specific bake-out and testing requirements.
Understanding Fastener Grades, Strength Classes, and Standards
A fastener's grade or property class tells you its mechanical properties. The governing specification tells you everything else: dimensions, material, testing, and markings. Confusing the two leads to sourcing mistakes.

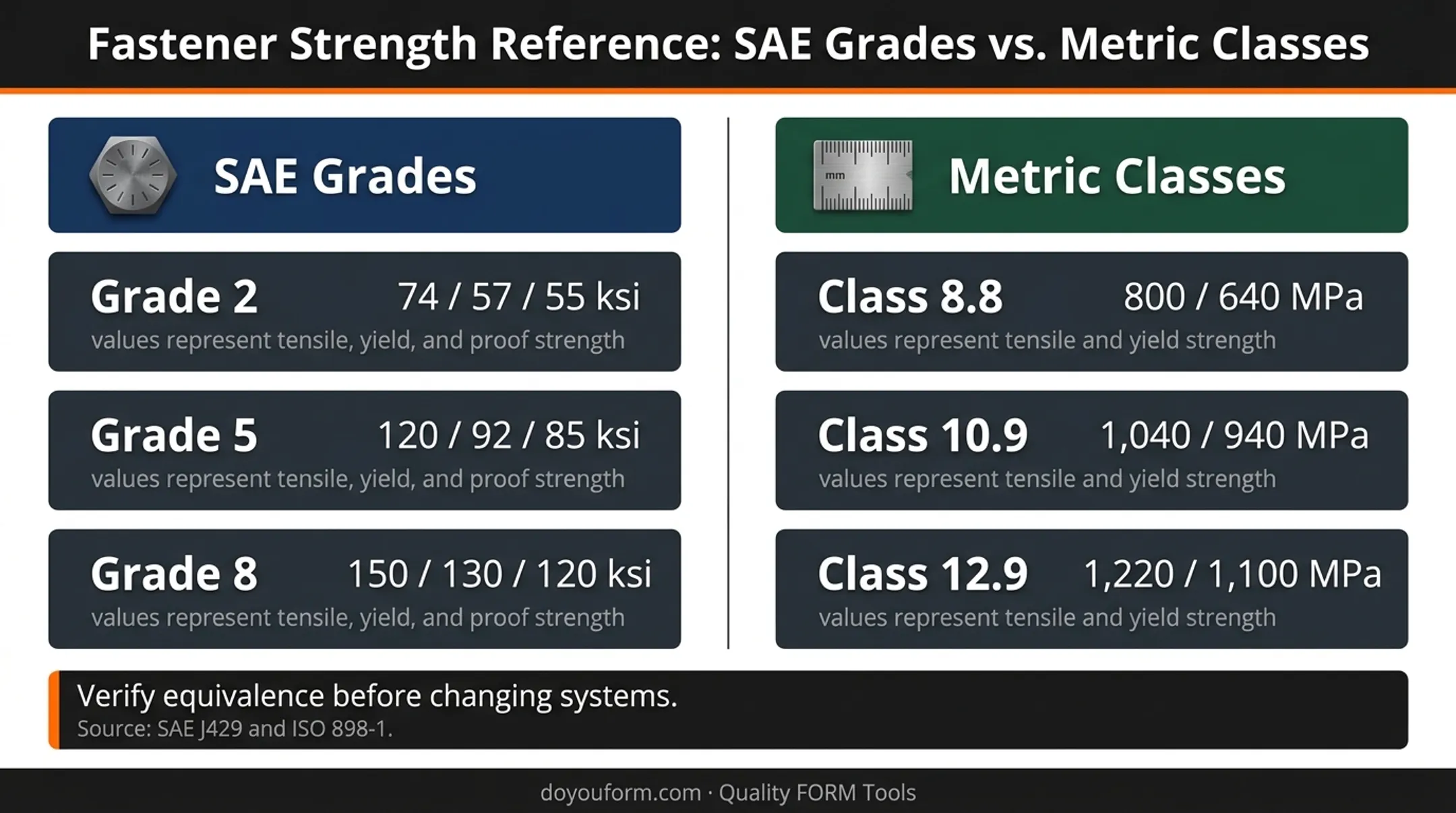

SAE Grades for Inch Fasteners
SAE J429 covers inch-series bolts and identifies grade by head markings:
| Grade | Head Marking | Tensile / Yield / Proof (ksi) |
|---|---|---|
| 2 | No radial lines | 74 / 57 / 55 |
| 5 | 3 radial lines | 120 / 92 / 85 |
| 8 | 6 radial lines | 150 / 130 / 120 |
Diameter matters here. Grade 2 values drop for sizes over 3/4 inch, and Grade 5 values drop above 1 inch — Portland Bolt's J429 reference table breaks out both diameter ranges. Always check the row that matches your actual bolt size.
Metric Property Classes
ISO 898-1 uses a two-part number: the first digit (times 100) is nominal tensile strength in MPa, the second relates to the yield ratio.
- Class 8.8: 800 MPa tensile / 640 MPa yield
- Class 10.9: 1,040 MPa tensile / 940 MPa yield (tested minimums)
- Class 12.9: 1,220 MPa tensile / 1,100 MPa yield (tested minimums)
ASTM Structural Designations
The former standalone ASTM A325 specification was withdrawn and consolidated into ASTM F3125/F3125M, which now covers Grades A325, F1852, A490, and F2280 under one document. A325 still exists as a grade name within F3125, not as its own standard.
Structural bolts under this framework require heavy hex heads and matching structural nuts (typically ASTM A563 or A194), not standard hex-cap hardware.
Properties That Actually Determine Suitability
- Tensile strength: maximum stress before fracture
- Yield strength: stress where permanent deformation begins
- Proof load: load the fastener withstands without permanent stretch
- Shear strength: resistance to side-loading (transverse) forces
- Fatigue resistance: how the fastener holds up under repeated load cycles
- Preload: clamping tension created during installation
A bolt with strong tensile numbers but weak fatigue performance will still fail in a vibrating assembly. One figure is never enough.
SAE Grade 5 and metric Class 8.8 post similar tensile figures, yet different specifications govern testing and markings. Treat cross-system comparisons as a starting point, not a drop-in swap—verify equivalence with an engineer before changing systems.
How to Choose High-Strength Bolts and Nuts for an Application
Selection starts with the joint, not the catalog page.
Define the Loading and Environment
Identify what forces the fastener will actually see:
- Tension, shear, or both: determines whether you're relying on clamp force or cross-sectional strength
- Vibration or cyclic loading: pushes fatigue resistance and locking method to the front
- Temperature extremes: some alloys lose strength or become brittle outside their rated range
- Corrosive exposure: moisture, salt, or chemicals may rule out plain carbon steel entirely
Match the Physical Specs
Lock in the geometry before you pick a grade:
- Diameter, length, thread pitch, and thread engagement
- Inch vs. metric (mixing the two is a common, costly field error)
- Head style, nut style, washer type, and available clearance
Build a Compatible Assembly
A high-tensile bolt paired with an undersized nut, incompatible washer, or soft base material can still fail the joint. Fastenal's structural bolt guidance is direct on this point. Grade 5 and Grade 8 hex-cap bolts are not substitutes for A325 or A490 structural bolts in RCSC-governed joints, even when the strength numbers look comparable.
Quick decision guide by application:
- Structural steel: ASTM F3125 grade, matched A563/A194 nut, F436 washer where required
- Industrial machinery: SAE Grade 5 or 8, matched J995 nut, verify vibration resistance
- Automotive/mobile equipment: Metric Class 8.8–10.9, manufacturer torque specs
- Corrosive/high-temp service: Stainless (ASTM F593) or specialty alloy, confirm galvanic compatibility
Installation, Inspection, and Failure Prevention
Even a correctly specified fastener fails if it's installed wrong.
Torque Isn't the Same as Tension

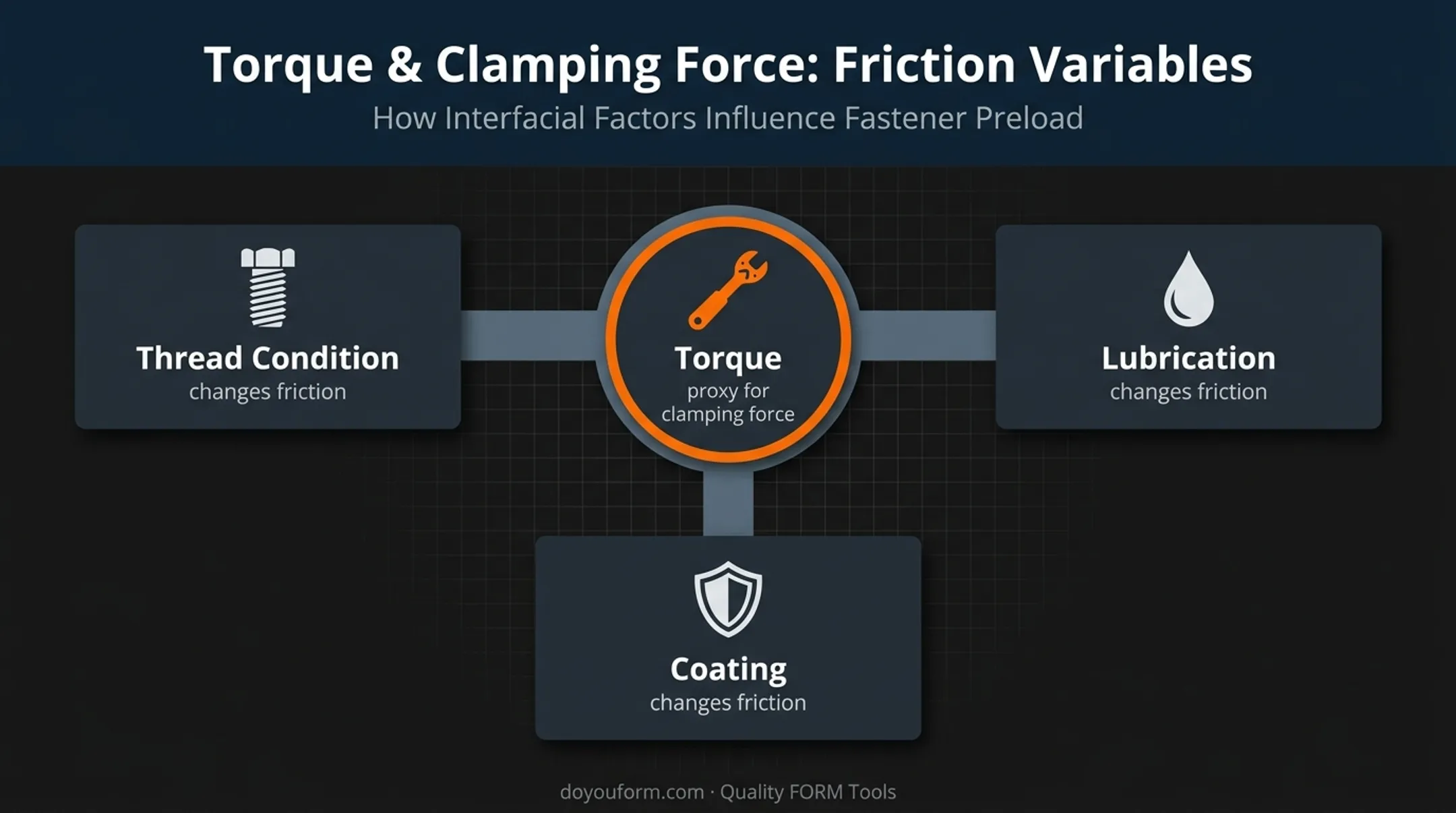

Torque is a proxy for clamping force, not the force itself. The relationship depends on friction: thread condition, lubrication, and coating all change how much torque produces a given preload. That's why the Research Council on Structural Connections prohibits relying on generic torque tables for calibrated-wrench installation without pre-installation verification specific to that lot of fasteners.
Common verification methods include:
- Turn-of-nut: a specified rotation from snug-tight condition
- Calibrated wrench: torque values verified against the actual assembly, not a chart
- Twist-off tension control: splined end shears off at target tension
- Direct tension indicators: measure gap compression under load
Installation Errors to Avoid
- Mixing inch and metric threads in the same joint
- Using a nut grade that doesn't match the bolt's property class
- Over-tightening, which risks thread stripping or embrittlement
- Under-tightening, which loses clamp force
- Skipping required washers on oversized or slotted holes
- Using a lubricant or coating not verified for that fastener grade
When to Inspect or Replace
Watch for these signs of trouble:
- Stretching, thread damage, or visible loosening
- Corrosion, cracking, or galling
Premature failure usually traces to vibration, thermal cycling, poor fit-up, or insufficient thread engagement, not the fastener grade itself.
Critical joints demand engineering sign-off. Structural, lifting, and pressure-related connections should follow documented procedures, not field judgment.
Sourcing High-Strength Fasteners and Related Manufacturing Support
Before placing an order, confirm:
- Governing standard (SAE J429, ISO 898-1, ASTM F3125, etc.)
- Grade or property class and material
- Dimensions, thread pitch, and thread engagement
- Head/nut style and finish
- Quantity, lead time, and documentation requirements
For safety-critical or regulated applications, request mill test reports, lot traceability, and dimensional verification. These records confirm the parts you received actually meet the standard you specified, not just what the label says.
Manufacturers producing bolts, nuts, or other formed fasteners face a parallel sourcing challenge: the tooling that makes the parts. Cold headers, thread rollers, and forming presses need dies, recess punches, cut-offs, quills, feed rolls, and wire draw dies built to tight tolerances.

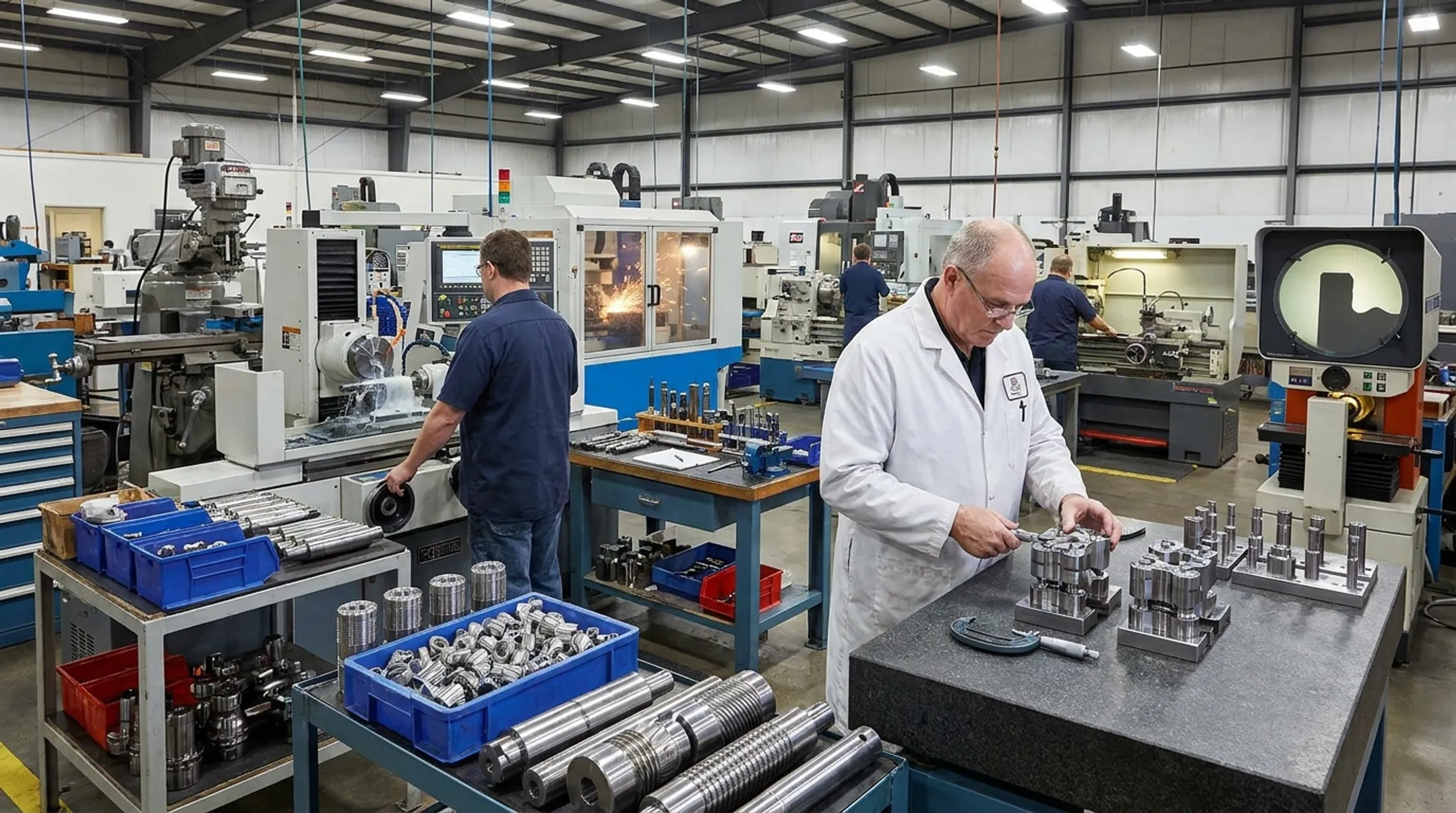

Quality FORM Tools, based in Hammond, Indiana, works with fastener and wire-forming manufacturers on this tooling, from custom cold header tooling packages to individual components like recess punches and feed rolls. The shop supports prototype runs through higher-volume production, using tool steels such as M2, D2, H13, and S5.
If you're tooling up a new fastener job or replacing worn components, sending a part print, tooling requirements, material specs, and expected volume gets a quote moving quickly.
Frequently Asked Questions
What is the strongest type of fastener?
Strength depends on material, grade, loading, temperature, and joint design. Specialty alloys can outperform standard grades in specific conditions, but general-purpose high-strength fasteners cover most industrial needs.
What is the strongest bolt you can get?
Specialty alloys and high property classes like 12.9 offer very high tensile strength. Match the bolt to your load, environment, and joint design rather than defaulting to the highest rating available.
Is A325 a high-strength bolt?
Yes. A325 is a structural bolt grade historically issued as its own ASTM specification, now consolidated into ASTM F3125. Confirm the current specification edition and matching nut requirements before ordering.
Which grade of nut is the strongest?
Nut strength only means something when matched to a specific bolt, diameter, thread, and standard. There's no single "strongest" nut grade independent of that context.
Are there Grade 8 nuts?
Yes, Grade 8 nuts are available under SAE J995 for the US market. Verify markings, dimensional standard, and material match against the specific Grade 8 bolt you're pairing them with.
What is a Grade 10 nut?
"Grade 10" can mean different things depending on the system referenced. SAE's inch-series nut grades are 2, 5, and 8. A metric Class 10 nut under ISO 898-2 is a separate designation entirely. Identify the governing standard first.
