Knockout Ejector Pins

In tooling and manufacturing assemblies, pins are commonly categorized into ejector pins and forming or extrusion pins. Ejector pins are specifically dedicated to part ejection from molds and dies, while forming and extrusion pins shape, pierce, or guide material during the manufacturing process. Both styles require precision machining to withstand repeated operational wear.

Ejector pins encompass several designs tailored to specific tooling requirements, including standard straight ejector pins, shoulder pins, knockout pins, and extrusion pins. Depending on mold tooling and part ejection needs, designs vary to accommodate different head geometries, surface finishes, and core configurations required for injection molding and cold forming applications.

Knockout pins and extrusion pins are widely utilized in injection molding, extrusion processes, and general mold tooling operations. They are critical for fastener forming, stamping, and forging applications where components must be accurately formed and cleanly ejected from dies. They serve operations ranging from prototype development to high-volume manufacturing.

Depending on application demands and wear requirements, tooling components can be manufactured from specialized tool steels such as M2, D2, H13, and S5. These tool steel grades provide distinct mechanical properties, including high hardness, wear resistance, and toughness, necessary for repeated thermal and mechanical impact during forming and molding cycles.

Tooling orders can be quoted across both low- and high-volume production needs. Sourcing accommodates everything from one-off custom replacement components and small prototype batches to large production runs of 100,000 parts or more. This flexibility allows manufacturers to support either specialized maintenance, tool room testing, or full-scale ongoing manufacturing operations.

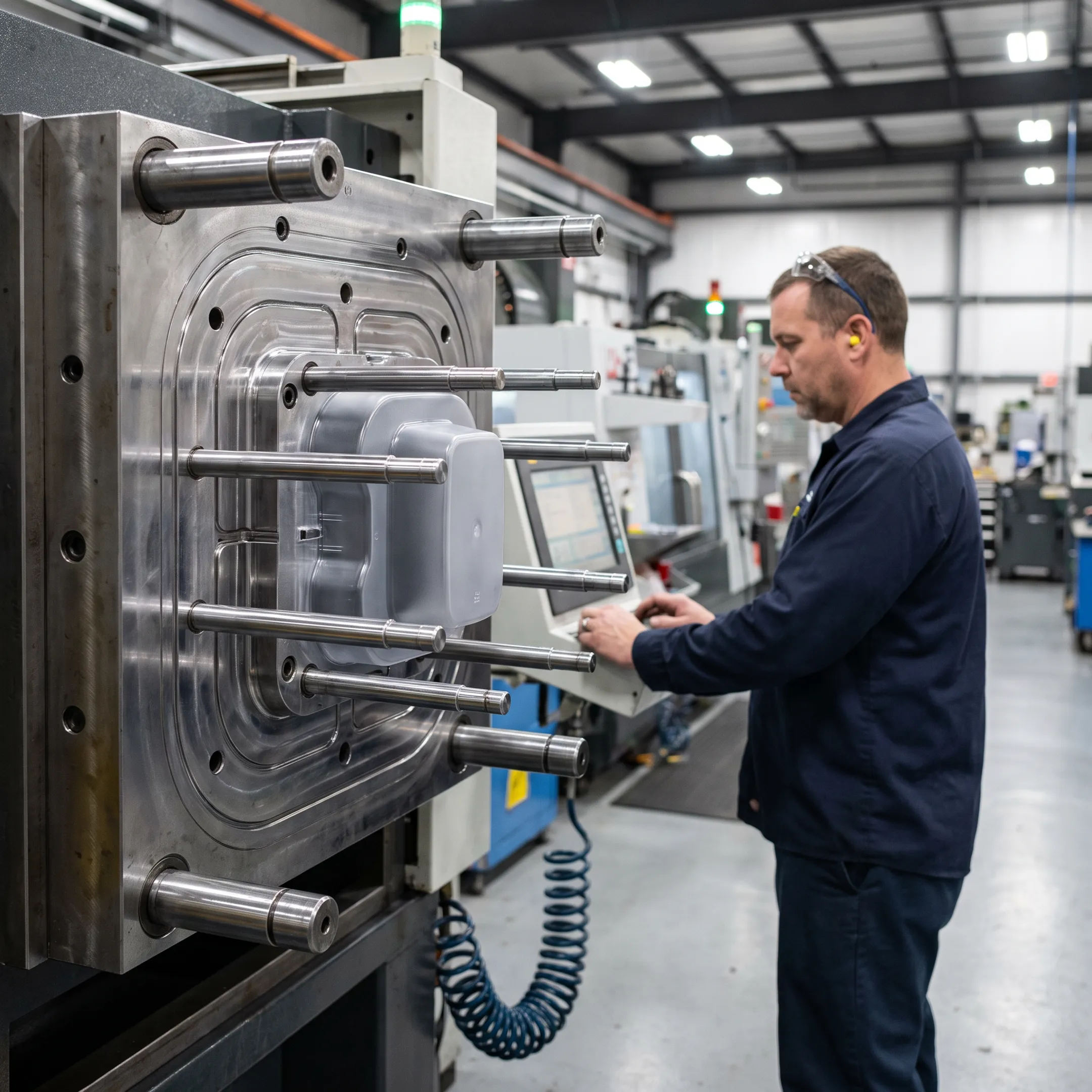

In mold tooling, knockout ejector pins are installed within the ejector plate assembly. When the mold opens after a cycle, the pins advance forward into the cavity to knock out the finished part without damaging its geometry. Precision manufacturing ensures tight tolerances, smooth travel, and minimal wear within the mold base over repeated production cycles.
