Introduction
Ask ten shop-floor engineers to define "stamping" and "blanking," and you'll get answers that overlap in confusing ways.
Both terms describe metalworking inside a press, using a punch and die to cut or shape sheet or strip stock. They aren't interchangeable, and mixing them up on a quote request can cost real time and money.
Metal stamping is the umbrella term for a family of press operations—cutting, bending, forming, coining, and more. Blanking is one specific cutting operation inside that family.
Which one your part needs affects tooling investment, edge quality, cycle time, scrap rates, and secondary finishing cost.
Scrap is often where those choices show up first. Nesting parts in a two-out arrangement instead of a one-out layout has produced an average 6%–7% material savings for pressworking operations, per one automation supplier's benchmark. On high-volume runs, that gap adds up fast.
This guide separates stamping from blanking, shows when each makes sense, and frames total production cost—not just the tooling quote.
Key Takeaways
- Metal stamping is the broad manufacturing category; blanking is one cutting operation within it.
- Stamping also covers punching, bending, forming, embossing, coining, and progressive or transfer die work.
- Use blanking when the cut-out is the part; use punching when the remaining sheet is the part.
- Conventional blanking fits high-volume, simple parts; fine blanking fits smooth edges or tight flatness.
- Compare tooling, cycle time, scrap, and secondary finishing, not just piece price, before choosing a process.
Metal Stamping vs Blanking: Quick Comparison
Metal stamping and blanking sit at different scopes in the same pressworking family. Stamping is the category. Blanking is one operation inside it, and fine blanking is a precision variant of that operation.
| Category | Metal Stamping | Conventional Blanking | Fine Blanking |
|---|---|---|---|
| Scope | Broad pressworking category: blanking, punching, bending, drawing, embossing, coining, flanging | Cutting operation that separates a shaped blank from sheet or strip | Precision blanking variant, still part of the stamping family |
| Tooling | Single-station, compound, progressive, or transfer dies | Standard punch-and-die set with a specified clearance | Specialized press with material clamping and counterpressure |
| Cut edge | Depends entirely on the operations and die selected | Sheared zone plus fractured zone; burr and rollover vary with clearance | Larger clean-sheared area; supports part flatness |
| Best fit | Multi-feature parts needing cutting and forming together | Simple, high-volume flat parts | Parts with mating, bearing, or load-critical edges |
Check these points before you compare quotes:
- Progressive tooling costs more to build than single-stage dies but typically runs faster once it's in production.
- Fine blanking tooling requires specialized press capability, so confirm equipment requirements with your manufacturer before assuming it's an option.
- Material utilization depends on strip layout as much as it does on the process itself. A poorly nested die can erase whatever savings a "cheaper" process promised.
Match the stamping configuration, cutting method, and press setup to your part's function—that choice drives cost, edge quality, and throughput more than the label on the process.
What Is Metal Stamping?
Metal stamping is a cold-forming process that uses a press, punch, die, and sheet or strip stock to cut, shape, or form metal parts. Material feeds into the die, the press applies force, and one or more stations create the cut or formed features the part needs.
Common operations include:
- Blanking – cutting out a shaped piece that becomes the part
- Punching or piercing – cutting holes where the removed slug is scrap
- Bending – forming angles along a straight axis
- Embossing and coining – raising or compressing surface features
- Deep drawing – forming a flat blank into a three-dimensional shape
- Trimming – removing excess material after forming

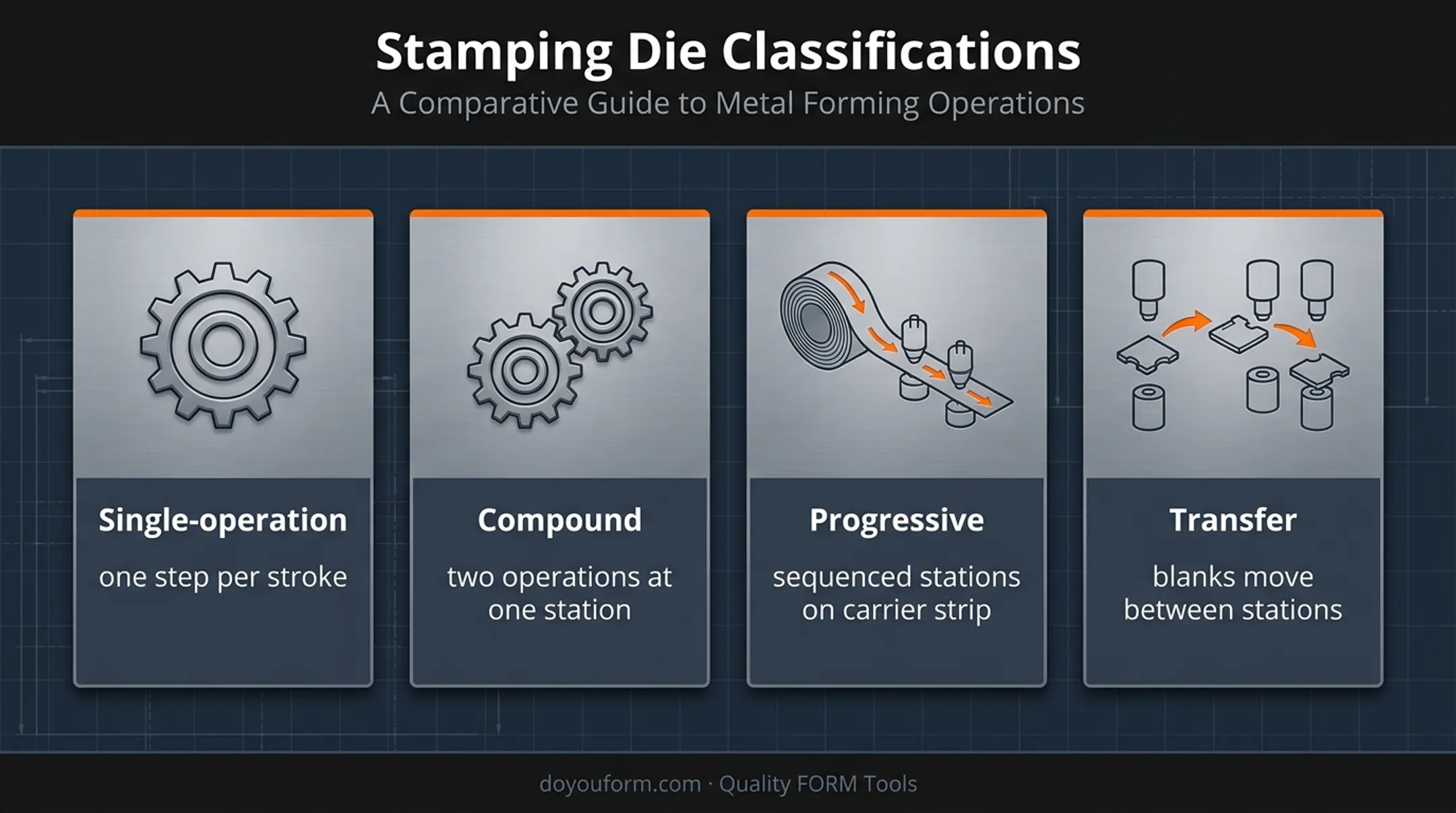

How Die Type Changes Production
The die arrangement determines how material moves through the shop:
- Single-operation dies perform one cutting or forming step per stroke.
- Compound dies combine two operations, such as blanking and hole punching, at a single station.
- Progressive dies advance coil stock through sequenced stations while parts stay attached to a carrier strip until the final separation.
- Transfer dies move individual blanks mechanically between stations instead of keeping them on a strip.
Progressive and transfer tooling generally cost more upfront, but they let several operations happen within one press stroke, which supports repeatable, automated production runs.
Use Cases of Metal Stamping
Stamping shows up anywhere a part needs cutting and forming combined in one tool: brackets, clips, housings, appliance components, and industrial machine parts. It's especially useful when a flat blank needs to become a three-dimensional component without moving between separate machines.
That single-line workflow is why stamping scales well in high-volume shops. When a Michigan stamper's transfer press hit roughly 130% of capacity, the shop installed four new servo presses and doubled pressroom output.
What Is Blanking?
Blanking is a shearing operation that cuts a specified external shape from sheet or strip. The removed piece, called the blank, becomes the finished part or the starting form for later operations like bending or drawing.
The basic sequence looks like this:
- Select and feed material into the press, whether coil, strip, or sheet stock.
- Align the material so the shape falls in the correct position on the strip.
- Close the punch and die, shearing the blank free from the surrounding sheet.
- Remove the blank from the die area.
- Manage the remaining skeleton, which becomes scrap or gets reused depending on layout.
What Affects Edge Quality
Several variables determine whether a blanked edge comes out clean or rough:
- Die clearance between punch and die
- Punch condition and wear
- Material type and hardness
- Stock thickness and grain direction
- Press alignment and speed
Get the clearance wrong, and you'll see burrs, rollover, or fracture zones that weren't in the part print. Many stamping design guides also recommend keeping roughly two material thicknesses between a punched hole and the blank's edge to avoid bulging near that edge.

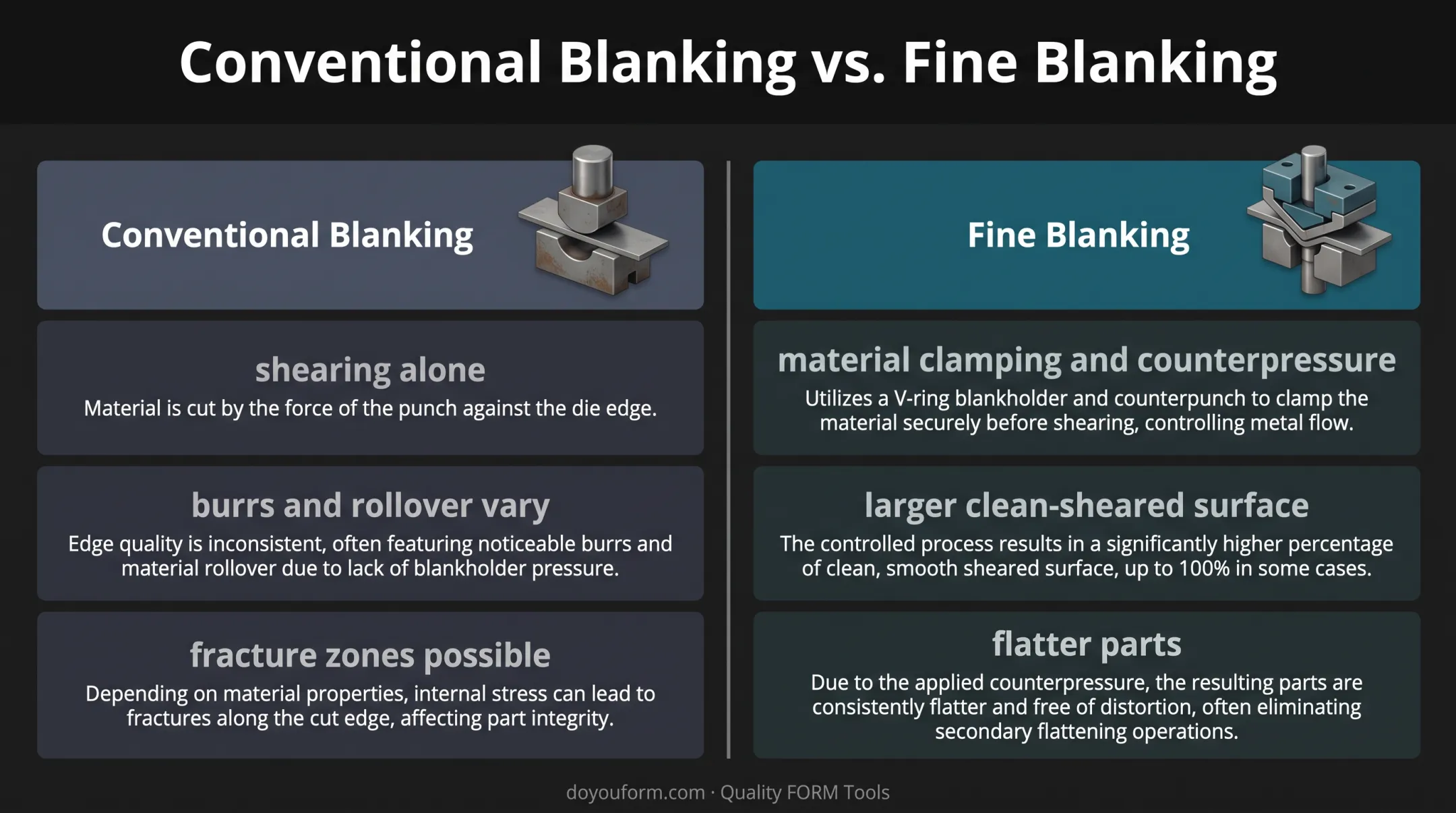

Conventional blanking relies on punch-and-die shearing alone. Fine blanking adds material clamping and counterpressure, producing a much larger clean-sheared surface and flatter parts. That difference matters most when the cut edge does functional work, not just cosmetic work.
Common blanking materials include carbon steel, stainless steel, and aluminum, with tool steel dies (M2, D2, H13 among them) selected to match the abrasiveness and hardness of the stock being cut.
Use Cases of Blanking
Blanking produces parts where the cut-out piece is the finished product: washers, discs, plates, brackets, and tabs. It's also frequently the first stage of a longer route, feeding into bending, drawing, forging, or machining downstream.
Feintool's published example of a two-out clutch-plate layout shows this in action. Its improved strip layout used 1.587 lb per part, compared to 1.723 lb per part in a one-out arrangement, a 7.9% material saving on that specific part. That's a manufacturer-reported figure for one part family, not an industry-wide average, but it illustrates how much layout decisions matter once you're running blanking at volume.
Metal Stamping vs Blanking: What Is Better?
This isn't really an either/or question. Blanking is often one operation inside a larger stamping process, so the real decision is which stamping configuration and cutting method best match your part's requirements.
Run through this checklist before locking in a process:
- What does the part's edge actually do (cosmetic, mating, load-bearing)?
- Does the external profile have tight tolerances or simple geometry?
- Are there internal features or holes close to the edge?
- How critical is flatness to downstream assembly?
- What material and thickness are you running?
- What's your annual volume, and how might it change over the part's lifetime?
- Will the design likely change, or is it locked?
- What press capacity does your supplier actually have available?
Conventional or progressive stamping with blanking generally fits when:
- Edge requirements are moderate
- The part needs multiple forming operations
- Geometry stays consistent across the run
- Combining stations offer a real cost advantage at your volume
Fine blanking deserves a closer look when:
- The cut edge is a mating, bearing, sliding, or sealing surface
- Flatness is a functional requirement, not just a nice-to-have
- Burrs could interfere with assembly or create a safety risk
- Secondary finishing (deburring, grinding, flattening) would add significant cost or lead time
Whichever direction you lean, compare total production cost, not the tooling quote alone. Factor in:
- Material yield and scrap rate
- Tool maintenance and cycle time
- Secondary steps after the press cycle: deburring, grinding, washing, and inspection
Real-World Examples and Case Studies
The two cases already covered here make the point well. The Michigan stamper that doubled pressroom output did it by investing in servo press capacity, not by chasing a cheaper piece price.
Feintool's clutch-plate example shows the opposite lesson: a 7.9% material saving came from refining strip layout on an already-specialized fine blanking process, not from switching processes altogether.
Process choice and total cost matter more than the sticker on the tool. Manufacturers weighing custom stamped or forged parts, replacement tooling, or production dies can send Quality FORM Tools a print and requirements for an initial discussion.
Quality FORM Tools sources cold header tooling, stamped and forged components, and machined parts through a network of domestic and overseas manufacturers. Any specific process still needs a technical review against your actual print before it is confirmed.
Conclusion
Metal stamping is the wider manufacturing category. Blanking is a focused cutting operation that may run alone or alongside other stamping steps in the same die. Neither process is automatically better. The right choice depends on:
- Edge condition needs
- Flatness requirements
- Production volume
- Scrap tolerance
- Secondary work cost you will carry
Before finalizing a die and press approach, walk through the complete part and production route, not just the cutting step. Quality FORM Tools works with stamping shops to flag issues your print alone won't show.
Frequently Asked Questions
What is the difference between stamping and fine blanking?
Stamping is the broad category of press operations that includes cutting and forming. Fine blanking is a specialized stamping process that uses material clamping and counterpressure to improve edge quality, flatness, and feature control.
What are the steps in the stamping process?
Material is prepared, fed into the die, and aligned with the punch. The press applies force to cut or form the required features, then the part is removed and may go through inspection or secondary finishing.
What is blanking?
Blanking cuts a desired external shape from sheet or strip stock. The removed blank becomes the finished part or the starting form for a later operation like bending or drawing.
What is the difference between blanking and punching?
In blanking, the cut-out piece is the desired product and the surrounding sheet is scrap. In punching, the sheet is the desired workpiece and the removed slug is scrap.
Is blanking cheaper than stamping?
Blanking is an operation within stamping, so this comparison depends on tooling, material yield, cycle time, and finishing needs rather than a fixed price difference between the two terms.
When should I choose fine blanking over conventional stamping?
Choose fine blanking when edge quality, flatness, or tight feature relationships are functionally important, or when cutting secondary finishing would justify the added tooling investment.
