Introduction
CNC turning is a computer-controlled subtractive process that spins a workpiece against a fixed cutting tool to produce round, tapered, and threaded components with tight, repeatable dimensions. When a part is built around a centerline—not a flat rectangular envelope—turning is usually the cleaner path than milling or hand lathe work.
Shops still struggle with the same calls on a print: how the rotating stock meets the cutting edge, which machine or material holds the tolerance, and when turning beats milling or a manual lathe. The short answer is geometry—turning owns features cut around a central axis.
This guide covers CNC turning types, core operations, material choices, real advantages and limits, and where turned parts show up in production—shafts, bushings, hydraulic fittings, pins, and tooling details.
Key Takeaways
- CNC turning rotates the workpiece against a stationary tool, ideal for cylindrical and rotationally symmetrical parts
- Match machine type (horizontal, vertical, Swiss-type, or mill-turn) to part size, weight, and feature complexity
- Material properties dictate tooling, coolant, and cutting parameters, not the reverse
- Turning delivers strong repeatability; off-center features usually need live tooling or milling
- One CNC program can support a single prototype or a 100,000-piece production run
What Is CNC Turning?
In CNC turning, a workpiece rotates in a spindle while a programmed cutting tool moves along and across its surface, shaving material away until the final profile emerges. Boring works the same way but cuts internal diameters rather than external ones. Call that out clearly on the drawing—the two need different tooling paths (Modern Machine Shop).

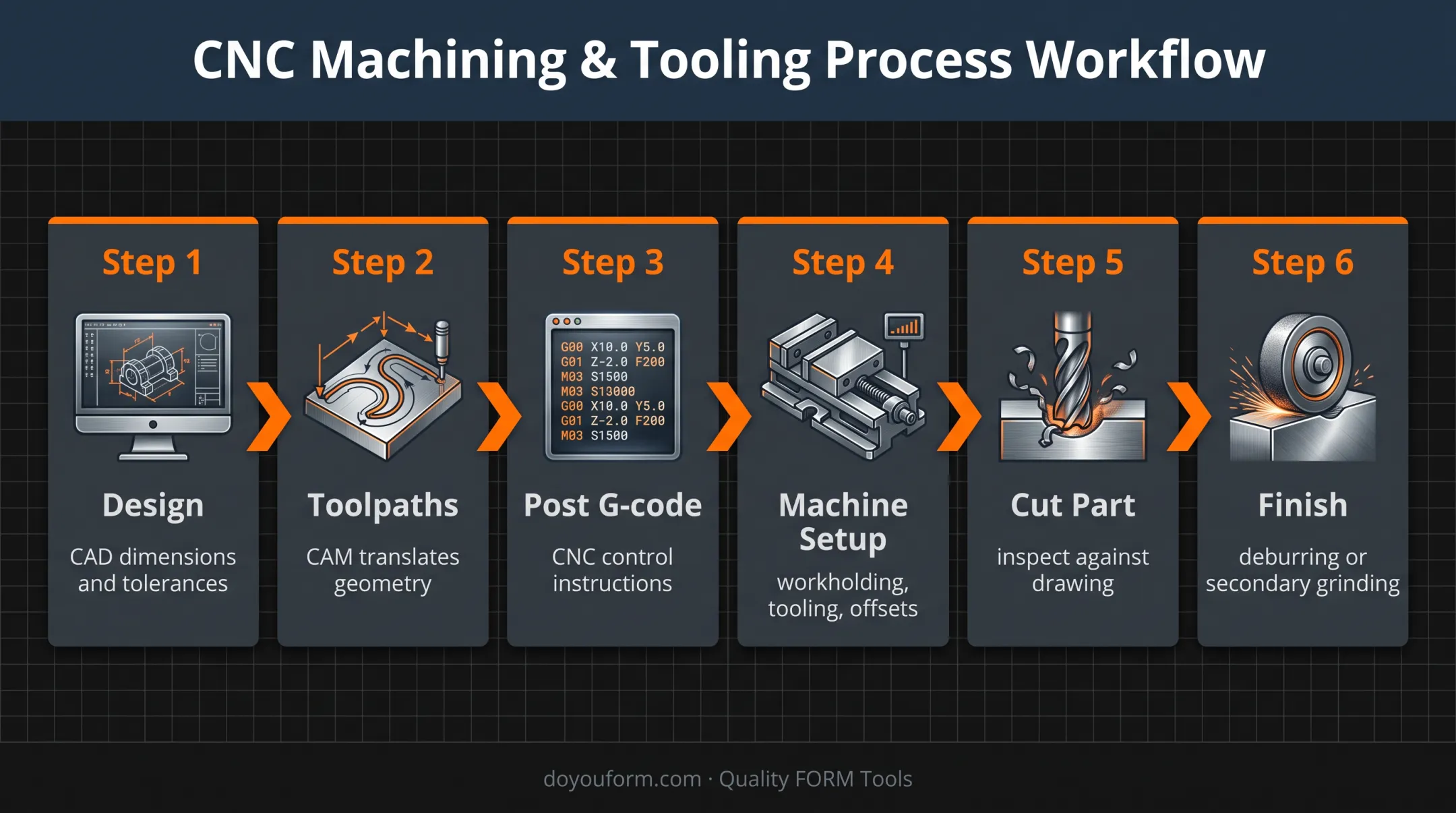

From CAD to Finished Part
The typical workflow moves through several stages:
- Design the part in CAD software with dimensions and tolerances defined
- Generate toolpaths in CAM software, translating geometry into cutting motion
- Post the G-code that the CNC control will execute
- Set up the machine: workholding, tooling, offsets
- Cut the part, then inspect it against the drawing
- Finish if needed, such as deburring or secondary grinding
Inside the Machine
A CNC lathe depends on a few core components working together:
- Spindle: rotates the workpiece
- Chuck: clamps stock in place
- Turret: holds and indexes cutting tools
- Carriage and cross slide: position those tools
- Tailstock (optional): supports longer stock
- Bed: provides the rigid structure everything sits on
A control system runs the program, and coolant manages heat and chip evacuation (Haas lathe operator's manual).
Terminology That Actually Matters
"Turning" is the process. "CNC lathe" is the machine performing it. "Turning center" generally signals more capability (live tooling, extra axes, or a second spindle), but the name alone doesn't guarantee those features are present. Always check the spec sheet.
Turning naturally suits parts built around a single axis. Off-center holes, flats, pockets, or prismatic details usually call for live tooling, a mill-turn machine, or a separate milling step.
Types of CNC Turning
CNC turning machines vary by orientation, bed design, axis count, tooling setup, spindle configuration, and automation level. Picking the right one starts with understanding what each configuration is built for.
Horizontal vs. Vertical Orientation
Horizontal turning handles smaller to moderate cylindrical parts well. Workholding is straightforward, and gravity helps chips fall away from the cutting zone rather than piling up on the workpiece.
Vertical turning flips the axis so gravity supports the part instead of fighting it. This matters for large, heavy, or wide workpieces where horizontal cantilevering would strain the spindle or cause deflection.
Okuma markets its vertical VT1000EX specifically for large, heavy components, including aerospace parts (Okuma).
Bed Configurations
- Flat-bed lathes: Suited to heavy-duty work, large diameters, and long shafts
- Slant-bed lathes: Favored for rigidity and chip evacuation, common in production environments
- Swiss-type (sliding-headstock) machines: Built for small, precise parts like connector pins, using a guide bushing that supports stock close to the cutting point

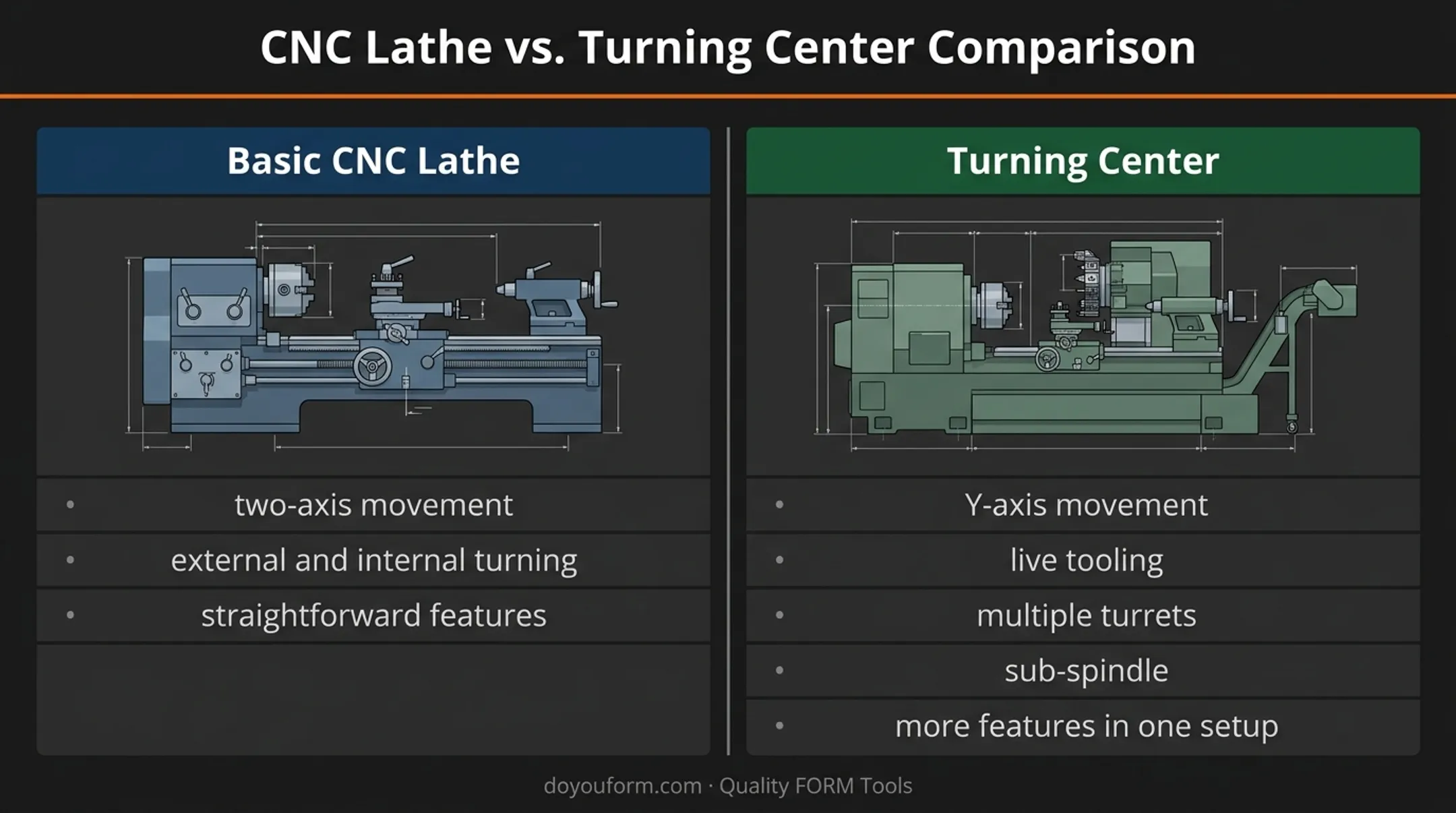

Basic Lathe vs. Turning Center
A basic two-axis CNC lathe handles straightforward external and internal turning. A turning center adds capability such as Y-axis movement, live tooling, multiple turrets, or a sub-spindle.
That lets a shop complete more features in one setup instead of moving the part between machines (Haas ST-20Y).
Common Turning Operations
| Operation | What It Produces |
|---|---|
| Straight/parallel turning | Reduced outside diameter along the part's length |
| Taper turning | Conical external surfaces |
| Facing | Flat end surfaces |
| Boring | Enlarged or finished internal diameters |
| Drilling | Holes on the workpiece axis |
| Threading | Internal or external screw forms |
| Grooving/parting | Recesses or final cutoff from bar stock |
| Knurling | Textured grip patterns |
Profiling, live-tool milling, cross-drilling, and other off-axis features typically require added axes or a mill-turn setup.
Choosing a Machine Type
Weigh these factors before committing to a configuration:
- Part diameter, length, and weight
- Symmetry and feature complexity
- Tolerance and surface finish requirements
- Production quantity
- Number of setups you can eliminate by using live tooling or a sub-spindle
Materials Used in CNC Turning
Material choice comes down to strength, hardness, corrosion resistance, weight, temperature performance, and machinability, plus how the finished surface needs to look and perform.
Metals
- Aluminum: Lightweight and generally easy to machine, though soft alloys can form adhesive chips and burrs that need managing (Sandvik Coromant)
- Carbon and alloy steels: Common for shafts, pins, and fasteners; hardness and heat treatment change how aggressively you can cut
- Stainless steel: Corrosion-resistant and widely used, but prone to work hardening and heat buildup that demand careful chip control
- Brass and copper: Generally machinable with good conductivity, though copper alloys can require specific tool geometry to control finish
- Titanium and superalloys: Excellent strength-to-weight, but low thermal conductivity concentrates heat at the edge, so use rigid setups and controlled coolant
Plastics
Common turned plastics include:
- Nylon and ABS
- Acetal (POM) and polycarbonate
- PTFE and PEEK
These show up where weight, chemical resistance, or electrical insulation matters. Plastics are more sensitive to heat and clamping pressure than metals. Acetal can distort from residual stress after material removal, and PTFE tends to burr if finishing isn't dialed in.
Matching Tooling to the Material
| Material Family | Key Property | Machining Consideration | Typical Application |
|---|---|---|---|
| Aluminum | Low weight, good conductivity | Chip control, burr management | Housings, brackets |
| Alloy steel | High strength | Hardness affects tool wear | Shafts, fasteners |
| Stainless steel | Corrosion resistance | Work hardening, heat buildup | Medical, food-grade parts |
| Titanium | High strength-to-weight | Low thermal conductivity, tool wear | Aerospace components |
| Acetal (POM) | Dimensional stability | Residual stress distortion | Precision plastic parts |
| PTFE | Chemical resistance | Burr formation | Seals, insulators |
Tool material, insert geometry, coating, speed, feed, and coolant all need to match the workpiece. Lock the material family first, then set the tooling package; no single cutting recipe covers every stock.
Advantages and Limitations of CNC Turning
Where CNC Turning Wins
Precision and repeatability. Programmed toolpaths and stable workholding keep dimensions consistent across a batch. Okuma's LB3000 EX brochure documents roughly a 5-micrometer diameter change under an 8°C ambient temperature shift in a specific test (a useful illustration of thermal sensitivity, not a universal tolerance promise) (Okuma).
Quality FORM Tools builds that same tight-tolerance focus into how it sources and delivers machined components.
Productivity through automation. Bar feeders, parts catchers, and sub-spindles reduce manual handling. Haas documents these features as standard automation options on its turning platforms.
Flexibility. One CNC program can run a prototype today and a production batch next month, provided tooling and setup carry over.
Reduced secondary work. Proper tool selection and finishing passes often eliminate extra grinding or polishing steps.
Safety. Enclosures and automated tool movement reduce direct contact with rotating stock, though trained setup and safe operating procedures remain non-negotiable.
Where It Falls Short
- Best suited to rotationally symmetrical parts, not complex prismatic shapes
- Subtractive cutting generates material waste
- Programming and setup carry upfront cost
- Long, thin parts can flex or vibrate under the cutting tool
- Off-round features often need a separate milling step
Volume Changes the Math
Low-volume jobs make sense for replacement parts or one-off precision needs. Higher volumes spread programming, tooling, and setup costs across more parts, improving the per-unit economics.
Before committing to turning, check:
- Geometry and part size
- Material, tolerance, and surface finish
- Quantity and lead time
- Inspection needs
- Whether a mill-turn setup would save a step
Applications and Choosing the Right Process
CNC-turned parts show up wherever rotational geometry matters:
- Shafts, bushings, pins, and spacers
- Fittings and threaded components
- Rollers, sleeves, and nozzles
- Hydraulic components and replacement machine parts
These parts serve automotive, aerospace, energy, medical, electronics, and general industrial manufacturing.

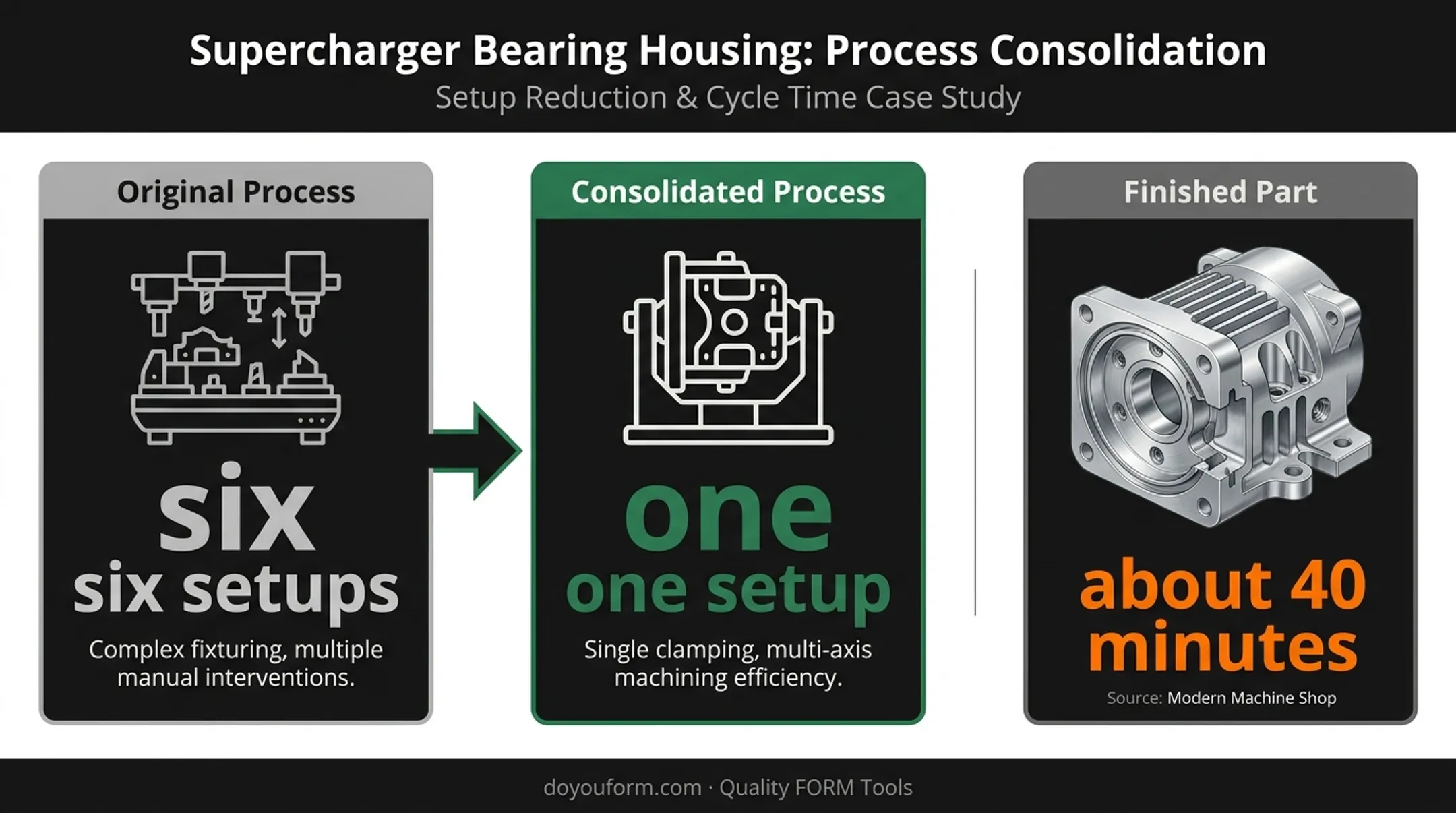

One documented example: a supercharger bearing housing project reduced from six setups to one using an Okuma Multus turning center, with a finished part completed in about 40 minutes. That result is case-specific, but it shows what consolidating operations can do (Modern Machine Shop).
Turning supports everything from a single prototype to a large production run. Match the machine to the part:
- Dedicated lathe: straightforward round parts
- Swiss-type: small precision pins
- Mill-turn: parts with both round and off-axis features
Sourcing Checklist
Before requesting a quote, have ready:
- A dimensioned drawing or 3D model
- Material and condition (annealed, heat-treated, etc.)
- Tolerances and surface finish requirements
- Quantity needed
- Inspection requirements
- Thread specifications and heat treatment, if applicable
- Delivery expectations
Manufacturers sourcing precision machined components, replacement machine parts, or related specialty tooling can contact Quality FORM Tools to discuss drawings, quantities, materials, and production requirements.
The company works with tool steels including M2, D2, H13, and S5, and draws on a network of domestic and overseas machining partners for both low-volume and higher-quantity turning jobs.
Conclusion
CNC turning uses controlled rotation and precise cutting to produce accurate, repeatable parts built around cylindrical or rotational geometry. Getting the best result means matching machine type, operation, material, tooling, and tolerance to what the part actually needs — not defaulting to whatever machine happens to be free.
Start by evaluating the part drawing and production volume. When geometry, material, or tolerance requirements make the right process unclear, consult a qualified manufacturing supplier before committing to tooling and setup. consult a qualified manufacturing supplier before committing to tooling and setup. Quality FORM Tools sources CNC turned parts and related precision components for manufacturers who need work matched to print, from one-offs through production volume.
Frequently Asked Questions
What does a CNC turning machine do?
A CNC turning machine rotates a workpiece while a programmed cutting tool removes material to create cylindrical, tapered, threaded, grooved, bored, or faced features. The tool stays fixed while the part spins against it.
What is the difference between CNC milling and CNC turning?
Turning rotates the workpiece and suits round or rotationally symmetrical parts. Milling rotates the cutting tool against a stationary workpiece to create flats, pockets, slots, and complex prismatic features.
What materials can be used for CNC turning?
Common metals include aluminum, steel, stainless steel, brass, copper, and titanium, alongside engineering plastics like nylon, acetal, and PEEK. Each material needs tooling, cutting parameters, and coolant matched to its properties.
What are the main types of CNC turning machines?
Machines vary between horizontal and vertical orientation, basic two-axis lathes and multifunction turning centers, and specialized configurations like Swiss-type or mill-turn machines. The right choice depends on part size, weight, and feature complexity.
Is CNC turning suitable for low-volume and replacement parts?
Yes. CNC turning works well for prototypes, one-offs, replacement components, and production batches when the part geometry, tolerances, and setup cost fit the run size.
