Many buyers treat the tightest number on a machine brochure as a guarantee. It isn't. What you actually get depends on the machine's condition, the material you're cutting, part geometry, and how many finishing passes the job calls for.
This article breaks down what wire EDM tolerance really means, why published ranges vary so widely, what drives the numbers up or down, and how to specify and verify a tolerance that actually holds in production.
Key Takeaways
- Wire EDM tolerance is permitted dimensional variation from the drawing spec—not accuracy, repeatability, or resolution
- No single tolerance applies to every job; results depend on material, thickness, geometry, wire, and pass count
- Typical range: 0.002 in (0.0508 mm) rough cut to 0.0002 in (0.00508 mm) after trim passes—conditional, not universal
- Never set the tightest published capability as production tolerance without supplier review and process evidence
What Wire EDM Tolerances Represent
A wire EDM tolerance is the allowable dimensional variation around a nominal feature size or location. It is produced by controlled electrical discharges cutting through a conductive workpiece.
Machine positioning resolution is not the same as finished-part tolerance. Spark gap, wire deflection under tension, thermal drift, and CNC kerf compensation all interact on the final cut. Tolerance is a resulting manufacturing characteristic that must be measured and validated on the part, not a figure taken straight from a machine spec sheet.
Accuracy, Precision, and Repeatability
These three terms get used interchangeably, and that's a mistake:
- Accuracy — how close the finished dimension is to the intended nominal value
- Precision — how tightly clustered repeated measurements are, regardless of whether they're centered on the target
- Repeatability — how consistently the same machine, same setup, produces the same result run after run
A machine can be precise and repeatable while still being inaccurate if it's consistently off-center. Ask suppliers which of the three—accuracy, precision, or repeatability—their quoted tolerance actually covers.
Factors That Influence Wire EDM Tolerances in Real-World Operation
Machine specifications describe ideal conditions. Shop floors don't work that way.
Material characteristics that shift cutting behavior:
- Conductivity and thermal conductivity — affect spark stability and erosion rate
- Hardness and composition — change how the material resists and responds to discharge energy
- Thickness — thicker stock means longer dielectric flushing paths and more taper risk
- Heat-treatment condition — hardened tool steels cut differently than annealed stock

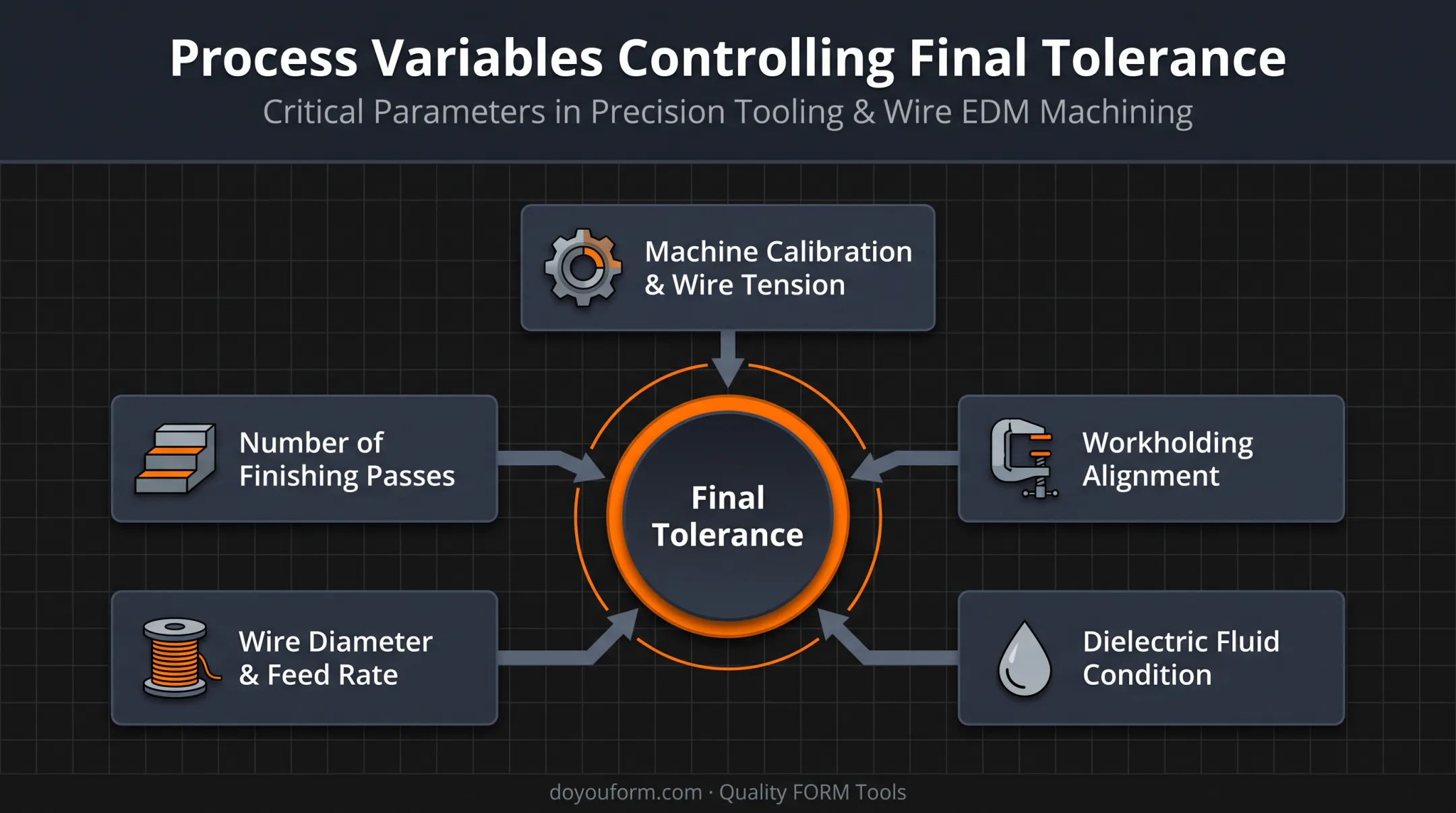

Process variables that determine the final result:
- Machine calibration and wire tension/guide condition — path error shows up directly in size and finish
- Workholding and fixture alignment — misalignment transfers straight into part geometry
- Dielectric fluid cleanliness and temperature control — dirty or warm fluid destabilizes the spark gap
- Wire diameter, cutting power, and feed rate — set kerf width and the surface-finish baseline
- Number of skim or finishing passes — each pass refines size and finish
More passes generally tighten achievable tolerance, but each one adds cycle time and cost. Use extra skims on tolerance-critical features; don't burn budget refining non-critical stock removal when you're pricing the job.
Range of Wire EDM Tolerances
No industry-wide rough/standard/finish classification applies universally. The figures below are published reference points for supplier discussions, not guarantees.
Nominal Operating Range

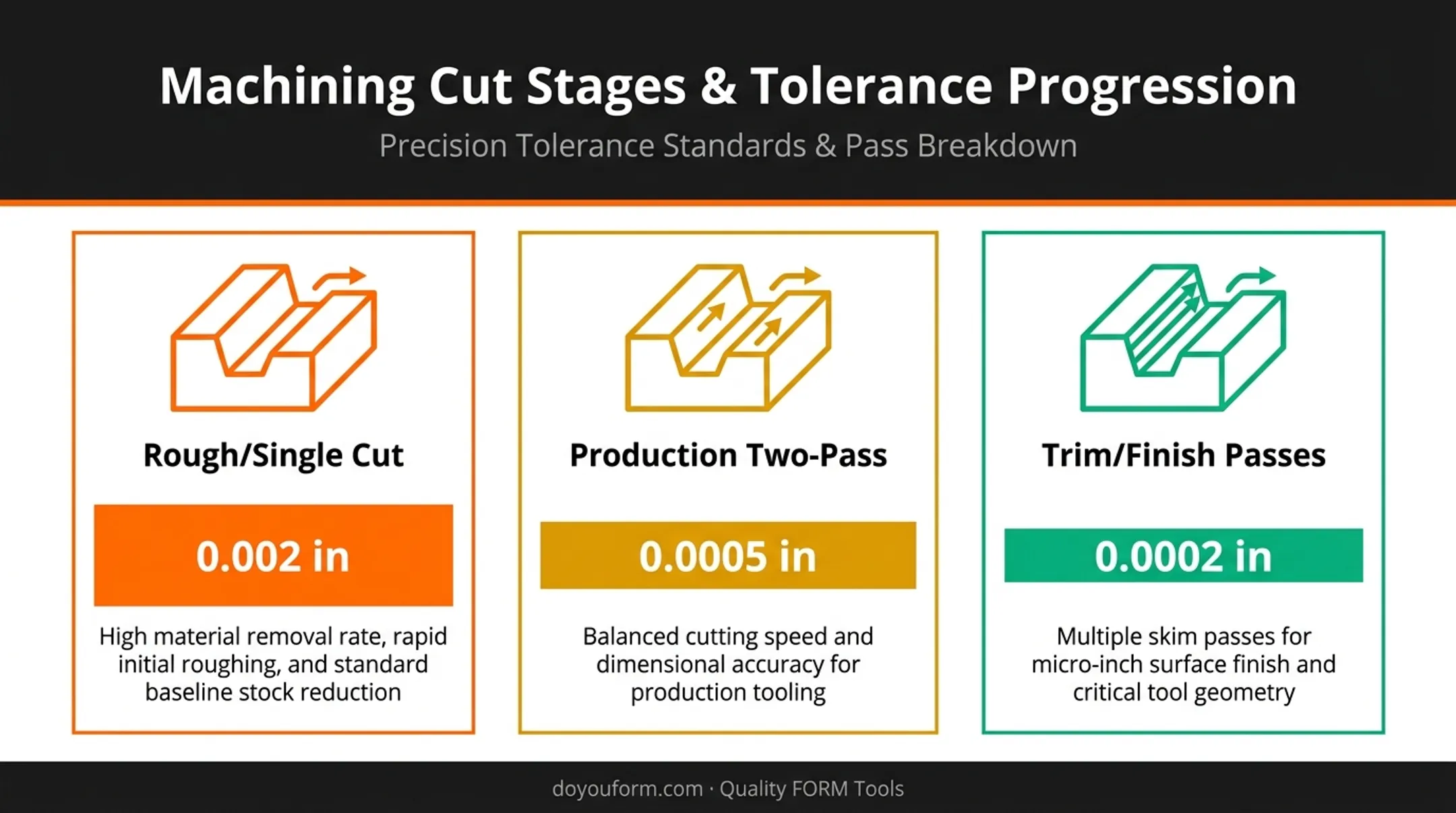

| Cut stage | Reference figure | Conditions |
|---|---|---|
| Rough/single cut | 0.002 in (0.0508 mm) | General service-provider benchmark |
| Production-oriented, two passes | 0.0005 in (0.0127 mm) | Makino reports this is achievable in two passes, but notes the process isn't intended for extreme tolerance work |
| Trim/finish passes | 0.0002 in (0.00508 mm) | Multiple skim cuts, tightly controlled setup |
Manufacturer capability claims run tighter still. Some report +/-1 to +/-5 microns under controlled material, thickness, and ambient temperature conditions. Those figures show what a machine can do in a demo, not what a supplier will guarantee across a full production lot.
Allowable Tolerance and Boundary Limits
Capability numbers only help if the print states the tolerance clearly. Call out both the direction of allowed variation and what the tolerance controls:
- Bilateral: variation allowed both ways from nominal
- Unilateral: variation allowed in one direction only
- Dimensional: governs size
- Positional: governs location relative to a datum
A supplier's process capability (demonstrated Cp/Cpk) is not the same as the tolerance on your drawing. A brochure best-case, a short demo run, and a repeatable production tolerance are three different claims. On critical features, ask for process capability evidence, not just a quoted number.
Safe Operating Margin
Designers build in margin for a reason: machine variation, thermal expansion, wire alignment drift, measurement uncertainty, and lot-to-lot material differences all eat into the theoretical best case.
Specify a tolerance at the edge of what a process can do, and expect:
- Additional skim passes to chase the number
- Slower cutting speeds
- More inspection time and cost
- Longer lead times
- Higher risk of nonconforming parts on lot inspection
Tighter than the part needs is not precision; it is added cost with no payoff.
Key Technical Properties and How They Are Validated
Tolerance only holds when you control, measure, document, and check it against what the part must do. The properties below decide whether a stated tolerance is realistic and how you prove it on the floor.
Stability and Variability
Short-term repeatability asks whether the machine can hit the same number five times in a row. Long-term process stability asks whether it can hold that number across a 10,000-part run over several days.
Long-term stability is more sensitive to:
- Thermal drift
- Dielectric fluid condition
- Wire tension and guide wear
- Workpiece movement
Geometry, Kerf, Taper, and Surface Integrity
Wire diameter and spark gap determine kerf width, so the CNC program must compensate for it. Internal corner radius is limited by wire diameter. You can't cut a sharper internal corner than the wire allows. Taper control matters separately from XY size accuracy, especially on thicker stock.
Tighter tolerances and finer surface finish generally mean:
- More finishing passes
- Slower cutting speed
- Higher cost per part
- Some recast layer (unavoidable with thermal EDM)
Specification, Measurement, and Validation
A usable RFQ or drawing should identify:
- Material and heat-treatment condition
- Stock thickness and nominal dimensions
- Critical features, datums, and GD&T requirements
- Surface finish and taper limits
- Quantity and inspection expectations

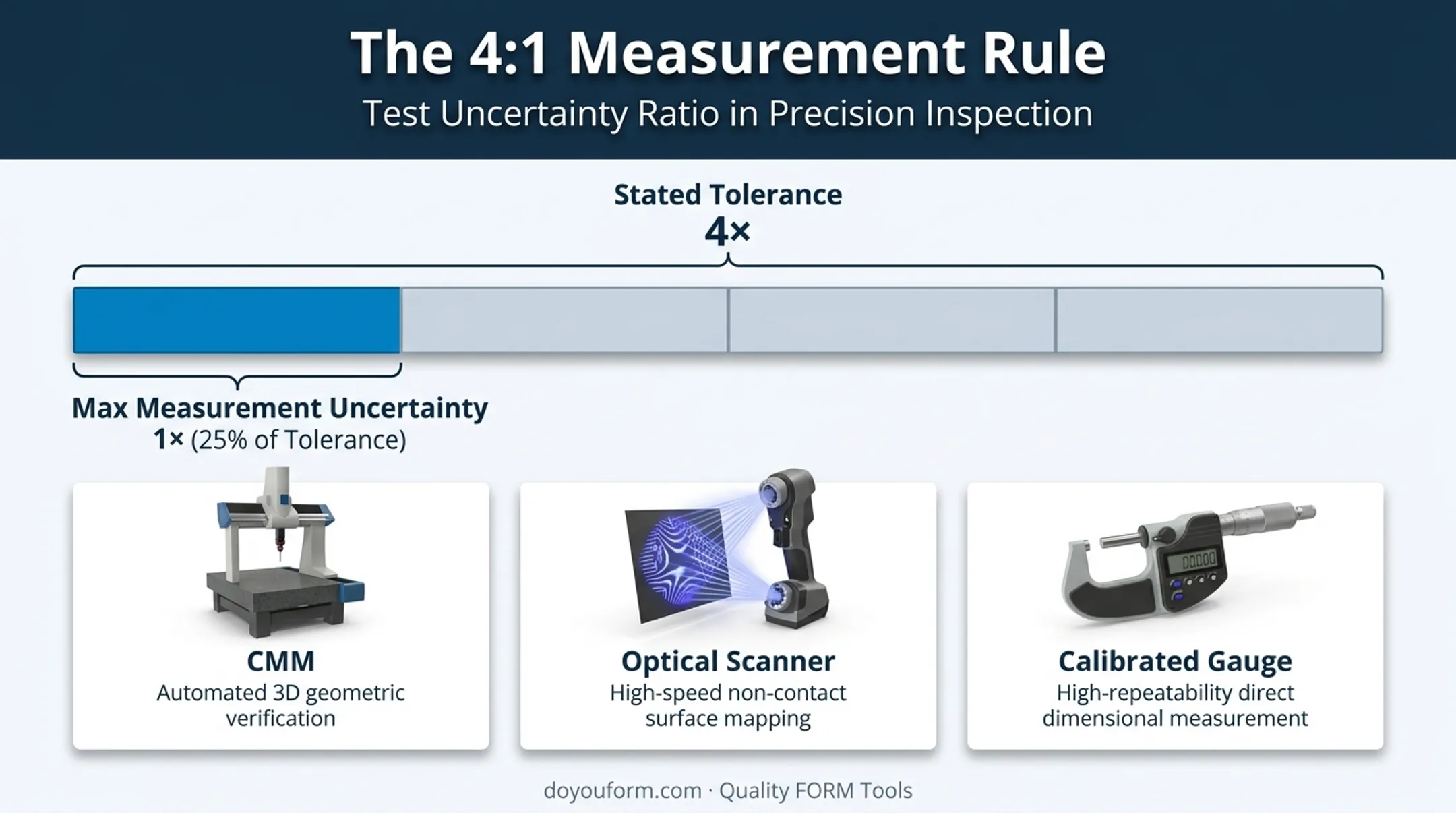

CMM, optical measurement, and calibrated gauges each have different strengths. Measurement uncertainty must stay small relative to the stated tolerance. A solid reference point is a 4:1 ratio: uncertainty should not exceed a quarter of the tolerance band.
Before committing to a critical run, ask for:
- First-article inspection reports
- Calibration records on measuring equipment
- Confirmation the supplier measured the same datums and features shown on your drawing
Implications of Operating Outside the Recommended Tolerance
Tolerance drift isn't abstract. It shows up as real production problems.
Performance Loss and Failure Modes

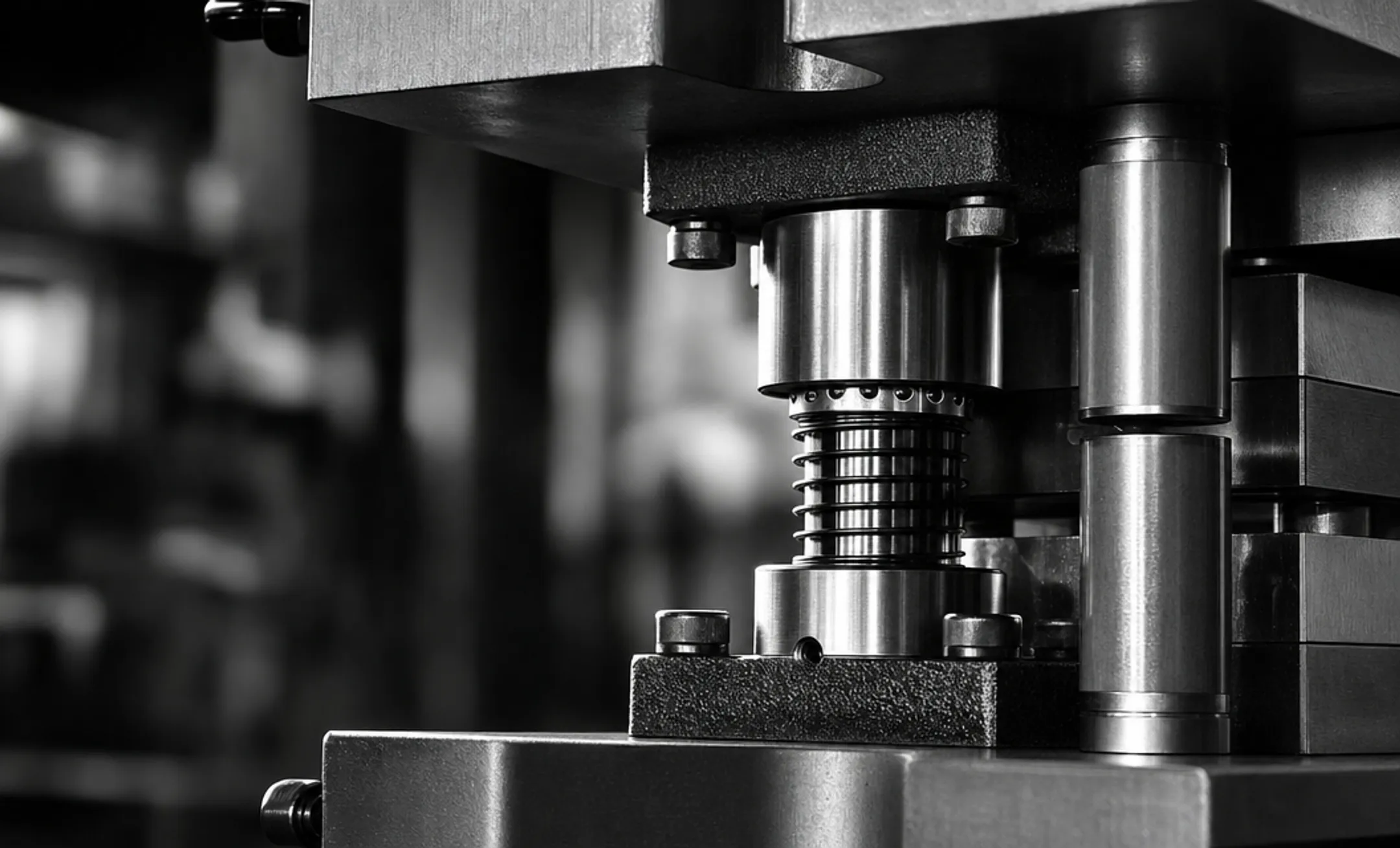

- Punch-and-die clearance — improper clearance from an out-of-tolerance cut accelerates wear, causes fracture, and creates a safety risk
- Mating components — replacement machine parts that don't match original clearances jam or bind
- Narrow slots and die inserts — small dimensional shifts compound quickly in tight-clearance features
- Alignment features — location tolerance errors cascade through an entire assembly
Common Misinterpretations in Practice
- Treating a nominal value as an absolute limit instead of a target with allowed variation
- Confusing machine positioning resolution with actual finished-part accuracy
- Assuming a tight tolerance holds equally across different materials and thicknesses
- Using a one-off lab demonstration as proof of repeatable production capability
Design and Sourcing Response
- Specify only the tolerances the part functionally needs
- Flag critical-to-function features clearly, separate from non-critical dimensions
- Share complete prints and material specs upfront
- Ask suppliers to review feasibility before committing to production
This is where a sourcing partner earns its keep. Quality FORM Tools works with fastener manufacturers, stamping shops, and forging operations across the Midwest to review prints and specialty tooling requirements before a job goes to a supplier.
Rather than promising a universal tolerance figure, the team connects customers with domestic and overseas manufacturers experienced in cold header tooling, die inserts, and replacement machine parts. Jobs are matched to shops that have already proven the tolerance in question.
Conclusion
Wire EDM tolerance is shaped by machine condition, material behavior, part geometry, process settings, and how the finished part gets measured. Brochure specs rarely transfer cleanly onto a production drawing.
Reliable results come from matching the tolerance to what the part actually has to do, then confirming the supplier can hold that number repeatably under real process capability and inspection methods. Chasing the tightest published figure usually costs more than it returns.
