That distinction shapes almost every decision you'll make afterward: tooling investment, part cost, material yield, cycle speed, dimensional consistency, and long-term maintenance. Choose wrong, and you'll either overpay for flexibility you don't need or hit a wall when your part geometry outgrows the tooling. Keats Manufacturing reports progressive stamping speeds ranging from 150 to 650 strokes per minute depending on the product, which shows how much variation exists even within a single process type.
This guide compares both methods across material flow, volume, geometry, and total cost, so you can match the process to your part print instead of guessing.
Key Takeaways
- Strip-fed progressive dies fit smaller, repeatable parts at medium-to-high volume.
- Individual-blank transfer dies handle larger, deeper, or complex 3D forms.
- Amortized unit cost often favors progressive; access and forming freedom favor transfer.
- Let total program cost, part envelope, and annual demand decide—not tooling price alone.
Progressive Stamping Dies vs Transfer Die Stamping: Quick Comparison
| Factor | Progressive Stamping | Transfer Stamping |
|---|---|---|
| Workpiece movement | Strip stays connected via carrier web | Blank separates and moves independently |
| Speed profile | Continuous strip feed, multiple stations act per stroke | Mechanical transfer between stations; rate depends on part and motion program |
| Best-fit geometry | Compact, strip-manageable parts | Larger, deeper, or multi-directional parts |
| Cost driver | Die complexity, strip alignment, carrier scrap | Transfer mechanism, gripper engineering |
| Material yield | Carrier web is scrapped after final cutoff | No continuous ribbon, but trimming scrap still applies |
Material and Workpiece Movement
In progressive stamping, coil stock threads through the die attached to a carrier strip. Pilots register the strip at each station until the final cutoff separates the finished part. Transfer stamping works differently: a blank or partly formed piece detaches early, and automated fingers or rails carry it independently through each operation.
Production Volume and Speed
Progressive dies benefit from continuous feeding and simultaneous station activity, which favors high-volume, repeatable runs. Transfer dies also run on automated lines, but shops typically choose them for part size or forming access rather than raw throughput.
Part Size and Geometry
Progressive tooling suits parts small enough to travel through a strip without distorting the carrier. Transfer tooling handles larger blanks, deep draws, and shapes needing access from multiple directions since the part isn't tethered to a web.
Tooling and Operating Cost
Progressive dies typically carry heavier upfront engineering costs but spread that investment across long, uninterrupted runs. Transfer systems add gripper and handling equipment costs, though independent parts can sometimes simplify station-level maintenance.
Material Efficiency and Quality Control
Progressive stamping loses material to the carrier web every cycle. Transfer stamping avoids that continuous ribbon, though blank layout and trimming still generate scrap. Both processes rely on in-die sensors and pilot checks to catch misfeeds before they cause defects. Actual yield depends heavily on part-specific nesting and layout.
What Is Progressive Stamping?
A progressive die is a multi-station tool where a continuous metal strip advances by a fixed pitch, and each station performs a specific operation: piercing, blanking, bending, coining, forming, or cut-off. The strip never leaves the die until the part is complete.

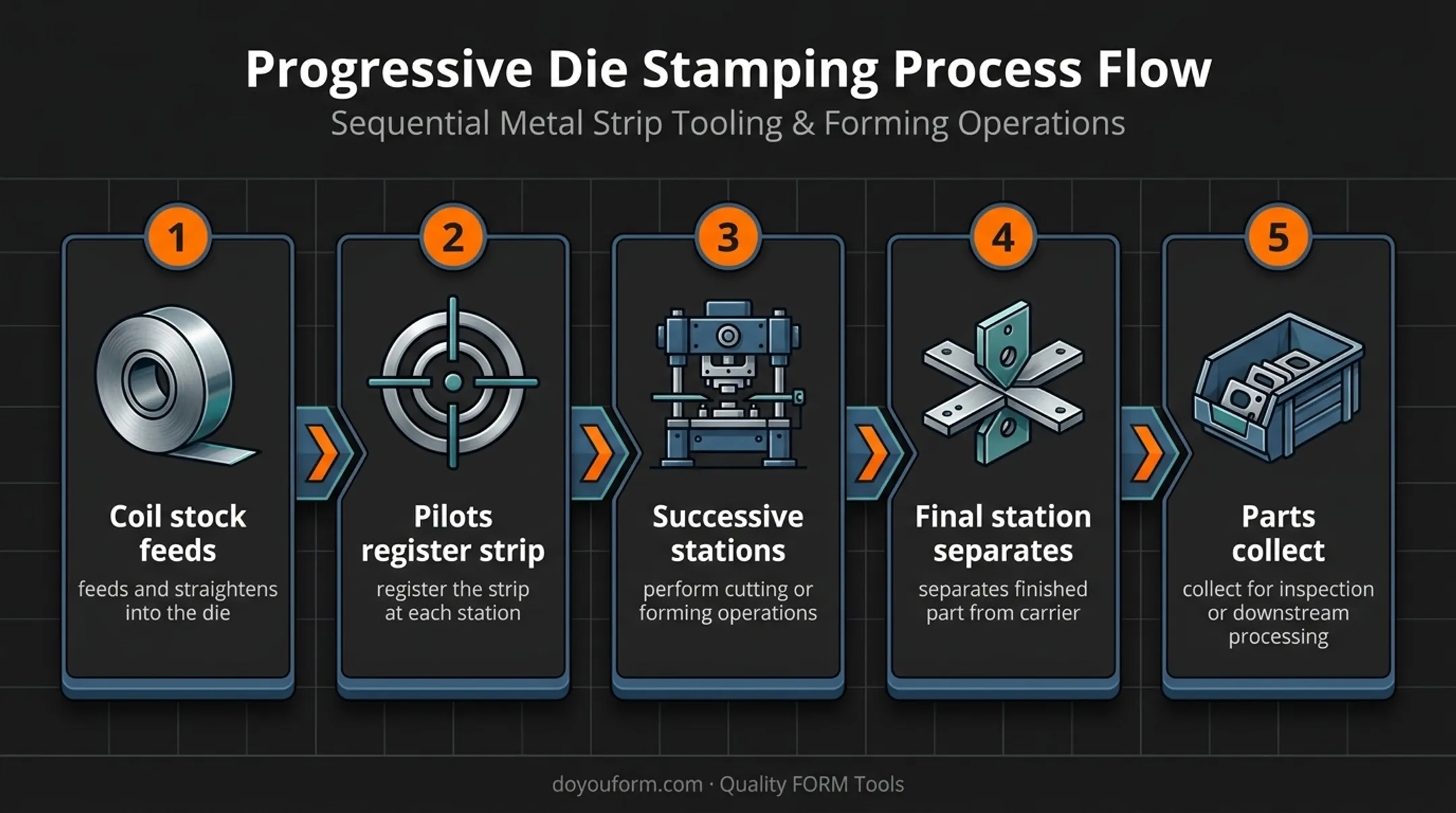

The sequence typically runs like this:
- Coil stock feeds and straightens into the die
- Pilots register the strip's position at each station
- Successive stations perform cutting or forming operations
- The final station separates the finished part from the carrier
- Parts collect for inspection or downstream processing
Benefits include:
- Repeatability across long production runs
- Reduced manual handling between operations
- High throughput from multiple operations in one continuous flow
- Lower unit costs once tooling is amortized
Limitations are just as real:
- Carrier-strip constraints limit part size and shape
- Feed alignment sensitivity can halt production if pilots misregister
- Higher upfront engineering and tooling commitment
- Multiple stations mean more maintenance points
- Design changes are costly once tooling is built
Progressive stamping makes sense when the part design is stable, demand is predictable, geometry fits within a strip, and the volume justifies dedicated tooling.
Use Cases of Progressive Stamping
Common applications include electrical terminals, contacts, connectors, brackets, clips, and fasteners. These parts are small enough to travel through sequential stations reliably. Composidie, for instance, documents progressive tooling built specifically for terminal and connector production.
Concord Tool & Manufacturing moved roughly 30 existing progressive tools onto a new servo press line, targeting runs of 20,000 parts or more. The company reported 2-3 times the productivity after the switch, with one 36,000-part job dropping from 3-4 shifts down to 1.5 shifts. That gain came from pairing progressive tooling with better press motion control, not from the die design alone.
Once part designs stabilize and progressive dies are locked in, shops still need reliable replacement tooling and precision components to keep presses running. Quality FORM Tools supplies stamped components and stamping-press replacement parts for that long-run phase—when dedicated tooling finally pays off.
What Is Transfer Die Stamping?
Transfer die stamping moves a blank or partly formed workpiece independently from one station to the next, rather than keeping it attached to a strip. The blank might come from coil stock cut early, or it might be loaded as a pre-cut sheet.

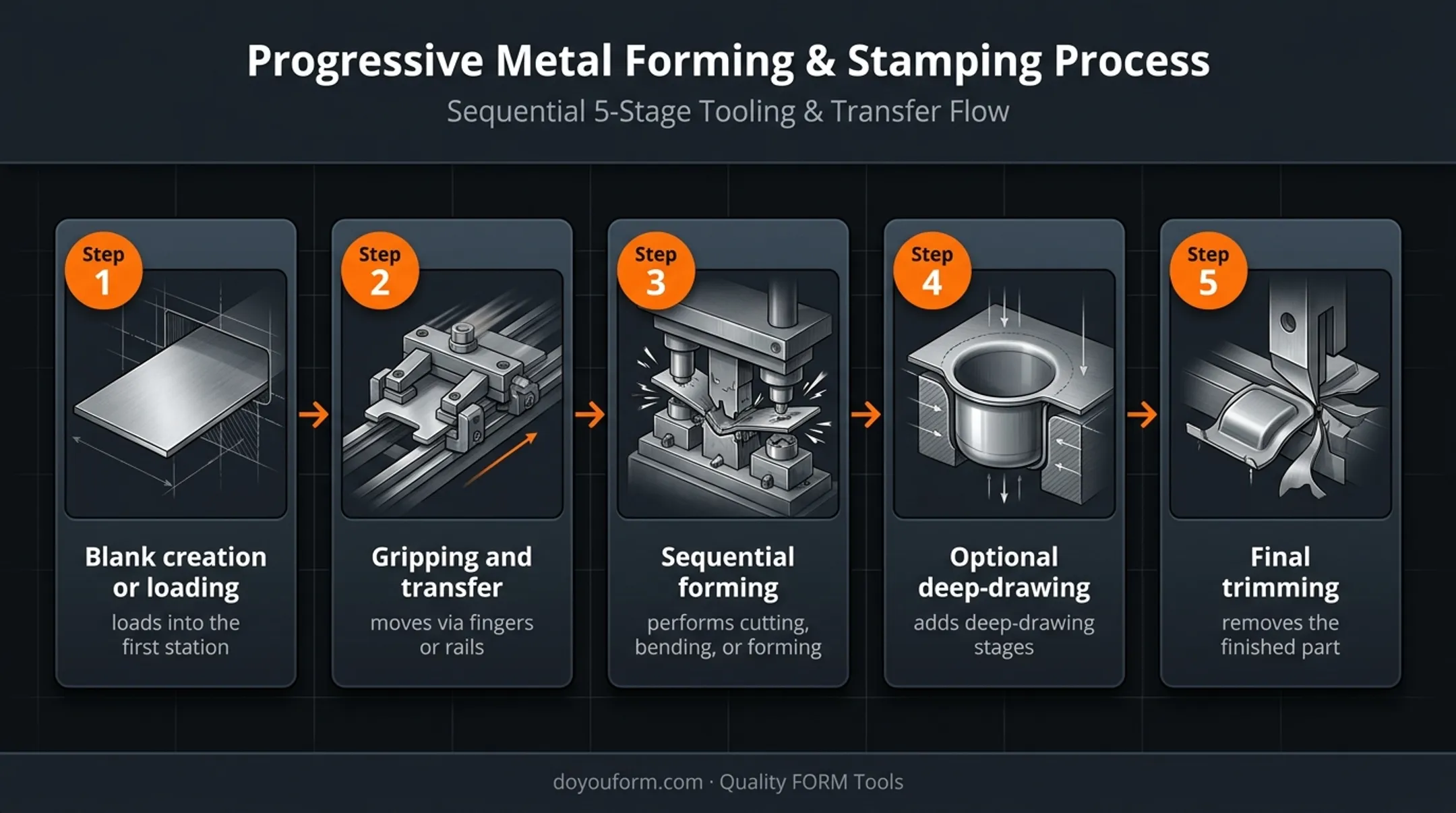

The process follows:
- Blank creation or loading into the first station
- Gripping and transfer via mechanical fingers or rails
- Sequential cutting, bending, or forming
- Optional deep-drawing stages
- Final trimming and part removal
Core benefits center on access and flexibility:
- Improved workpiece access from multiple directions
- Room for larger or deeper part geometries
- Support for complex, multi-stage forming sequences
- Ability to incorporate features that are difficult on strip-fed parts
Trade-offs include:
- Transfer-system engineering complexity
- Gripper alignment requirements
- Station timing coordinated with press motion
- Higher setup and tooling investment, especially on new lines
Transfer stamping fits best when parts are large, deep-drawn, three-dimensional, or need forming access a carrier strip would restrict.
Use Cases of Transfer Stamping
Typical parts include drawn shells, housings, structural frames, and pans—components too large or deep for a practical progressive strip layout. Trans-Matic identifies electrical housings, brackets, and appliance parts as common transfer applications.
Motor City Stamping is a clear geometry-driven case. The Michigan-based stamper already ran progressive presses, then added a transfer press to widen its part range.
It cited the ability to use full coil width, reduce blank size and scrap, and form larger parts from multiple directions as reasons for the switch. Its first job on the new press was a GM hood-reinforcement part—a component that would not fit a progressive strip layout.
Transfer tooling can also cut secondary operations when part access lets features form in-line—if the sequence and geometry support it.
Progressive Stamping vs Transfer Stamping: What Is Better?

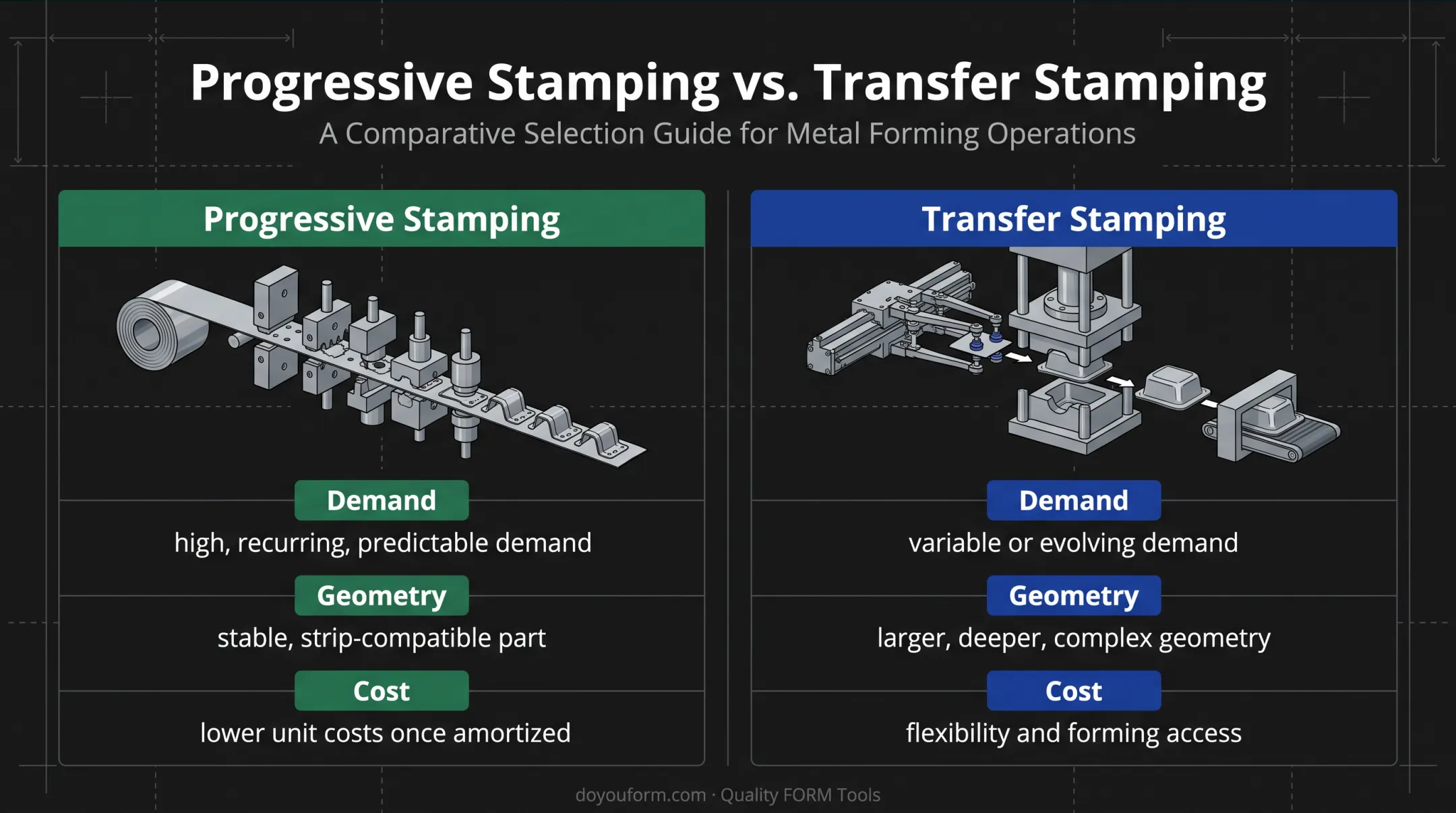

Neither method wins universally. The right answer starts with a part print, material spec, production forecast, and tolerance plan, not a generic preference.
Production volume and demand stability: If demand is high, recurring, and predictable, a dedicated progressive die usually pays off. If demand is variable or the program is still evolving, transfer tooling's flexibility may fit better.
Part size, depth, and geometry: Review the part envelope, draw depth, bends, ribs, holes, and features requiring independent handling. Anything needing access from more than one direction leans toward transfer.
Total cost of ownership: Compare die construction, press time, material yield, scrap, labor, transfer equipment, maintenance, and expected tool life, not just the quoted tooling price.
Supplier and design review: Ask potential tooling partners about:
- Request DFM feedback and strip or blank layout optimization
- Review forming simulation and tolerance control
- Confirm maintenance access and spare component availability
- Require quality documentation and contingency planning
Situational Recommendations
- Choose progressive when the part is strip-compatible, the design is stable, and demand is consistently high.
- Choose transfer when the part is larger, deeper, or needs forming access a carrier strip would block.
- Consider alternatives such as compound dies, staged tooling, or machining when volumes are uncertain or geometry doesn't suit either die type.
Real-World Examples and Case Studies
The Concord Tool and Motor City Stamping examples above illustrate the split clearly:
- Concord Tool kept its progressive dies and paired them with a servo press to push more volume through stable, repeatable tooling
- Motor City Stamping added transfer capability because bigger, more complex parts wouldn't fit its existing progressive lines
Neither company abandoned its original process. They matched new equipment to new part requirements. Your part print and production forecast should drive the tooling decision, not a blanket preference for one method.
If you're weighing progressive versus transfer tooling for an upcoming job, Quality FORM Tools works with manufacturers on custom tooling and stamped or forged replacement parts. Share your part drawings, material requirements, and volume expectations, and the team can help identify what fits your production goals.
Conclusion
Progressive stamping dies suit continuous-strip production of stable, repeatable parts at volume. Transfer stamping fits larger, deeper, or more complex parts that need independent movement between stations. Both deliver strong throughput and consistency when matched to the part.
Before committing to tooling, weigh these factors against your print:
- Total program economics across the full production run
- Forming depth, geometry, and part complexity
- Quality risks at each station in the process
- Likelihood of future design changes
A cheaper quote today can turn expensive fast if the process can't handle a design revision next year. The decision should rest on the print in front of you, not on which method sounds more advanced.
Frequently Asked Questions
What is a progressive die and how does it work?
A progressive die is a multi-station tool where a continuous metal strip advances through sequential stations, each performing a specific cutting or forming operation. The part stays attached to the carrier strip until the final station separates it.
What are the 7 steps in the stamping method?
Typical steps are tooling design and build, material loading, workpiece feed or alignment, cutting or forming, part advance or transfer, inspection, and ejection or separation. Exact sequences vary by process type.
What are the key differences between progressive and transfer die stamping?
Progressive stamping keeps parts attached to a strip through sequential stations; transfer stamping moves separated blanks independently between stations. Progressive tooling suits smaller, repeatable parts, while transfer tooling handles larger or more complex geometries.
What is the difference between a compound die and a progressive die?
A compound die performs multiple operations in a single press stroke at one station. A progressive die spreads operations across multiple stations as the strip advances, completing the part over several strokes.
What is a die in stamping?
A stamping die is a precision tool set containing cutting, forming, or drawing components that shape sheet or strip material inside a press. It can range from a simple blanking die to a complex multi-station progressive or transfer setup.
What are the three main types of stamping dies?
Progressive, transfer, and compound dies are the three major categories. Specialized designs like deep-draw dies, combination dies, and single-operation dies also exist for specific part requirements.
