Getting this choice wrong isn't a minor detail. A pin that's too loose in its hole leads to misalignment. One with the wrong retention method can back out under vibration. Maintenance teams often inherit these problems years after the original assembly decision was made, when a "quick fix" pin swap causes premature joint failure down the line.
This article breaks down the main pin fastener types, where each one fits, and the trade-offs engineers and maintenance teams should weigh before specifying one.
Key Takeaways
- Pins rely on interference fits, friction, spring tension, or retaining clips instead of threaded preload.
- Dowel and taper pins handle alignment; clevis pins support pivots; cotter and lynch pins provide retention.
- Spring, grooved, and coiled pins absorb vibration and simplify assembly in space-constrained joints.
- Quick-release, detent, and handle pins suit equipment needing frequent access or adjustment.
- Match the pin to load, hole tolerance, environment, and maintenance frequency — not just its name.
What Are Pin Fasteners and Why Are They Important?
A pin fastener is a cylindrical, tapered, shaped, or spring-loaded component inserted into a prepared hole to align, join, retain, position, or permit movement between parts.
That's the core distinction from bolts and screws: pins are typically unthreaded and don't clamp parts together through threaded preload. Instead, they work through shear resistance, interference or friction fits, radial spring tension, positive locking mechanisms, or secondary retainers like cotters and clips.
Pin fasteners handle five main jobs in industrial assemblies:
- Aligning mating components, tooling, dies, housings, and machine parts with repeatable accuracy
- Enabling pivoting or hinged movement in linkages, levers, and agricultural equipment
- Retaining shafts, nuts, clevises, trailers, and adjustable components against withdrawal
- Allowing fast installation and removal where maintenance access matters
- Controlling position in jigs, fixtures, presses, and production equipment
When the wrong pin gets specified, the consequences show up fast: excessive clearance causes rattling and wear, difficult removal damages the surrounding hole, or an under-retained pin backs out entirely under vibration.
A pin that's asked to carry structural shear load when it was only designed for light positioning will fatigue and fail.

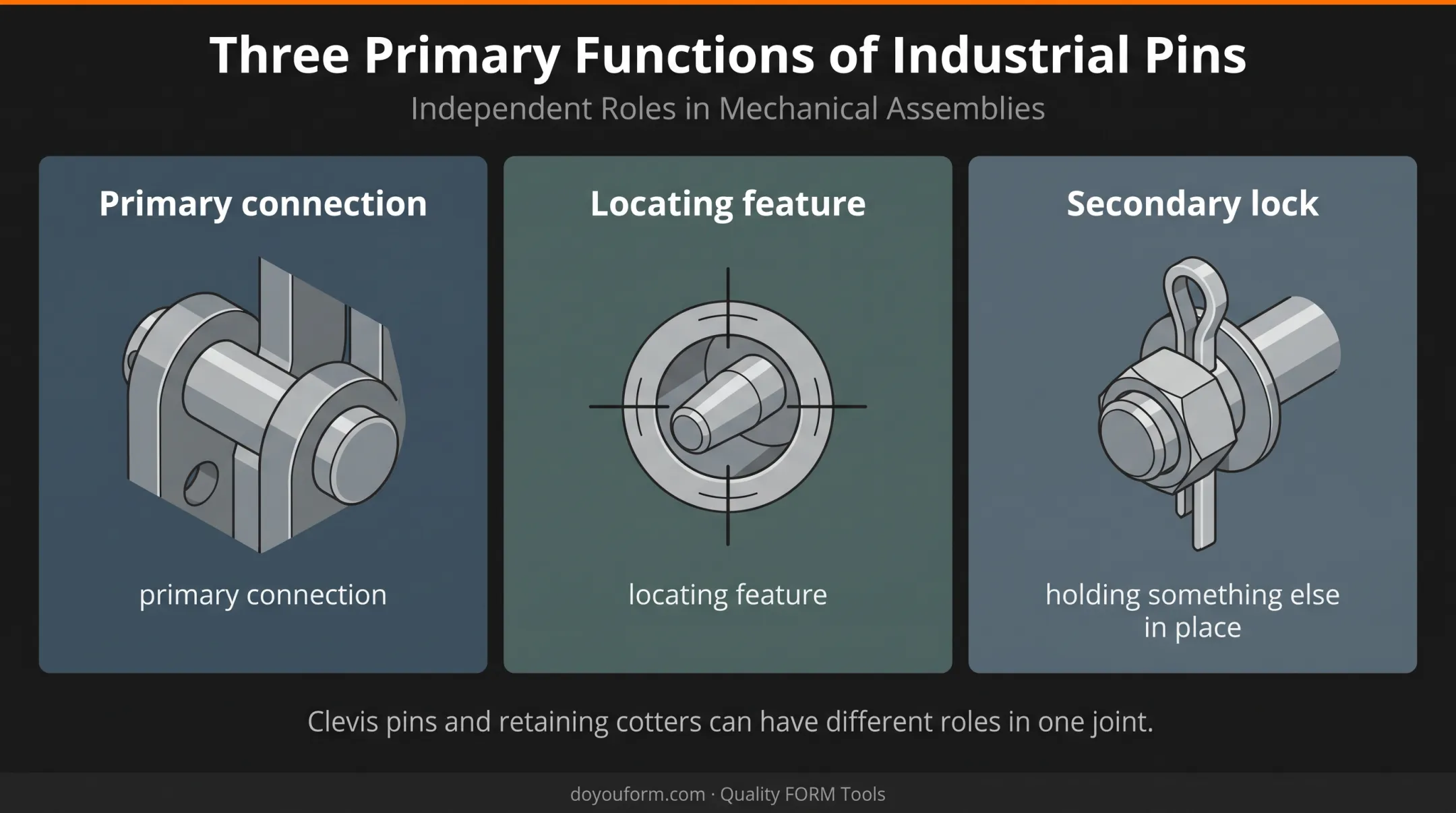

Before comparing types, ask what job the pin is actually doing. Is it a primary connection, a locating feature, or a secondary lock holding something else in place? A clevis pin and its retaining cotter play entirely different roles in the same joint — treating them as interchangeable is where a lot of assembly problems start.
Types of Pin Fasteners
Pin fasteners are best sorted by function: alignment, pivoting, retention, interference fitting, or quick release. Here's how the main families break down.

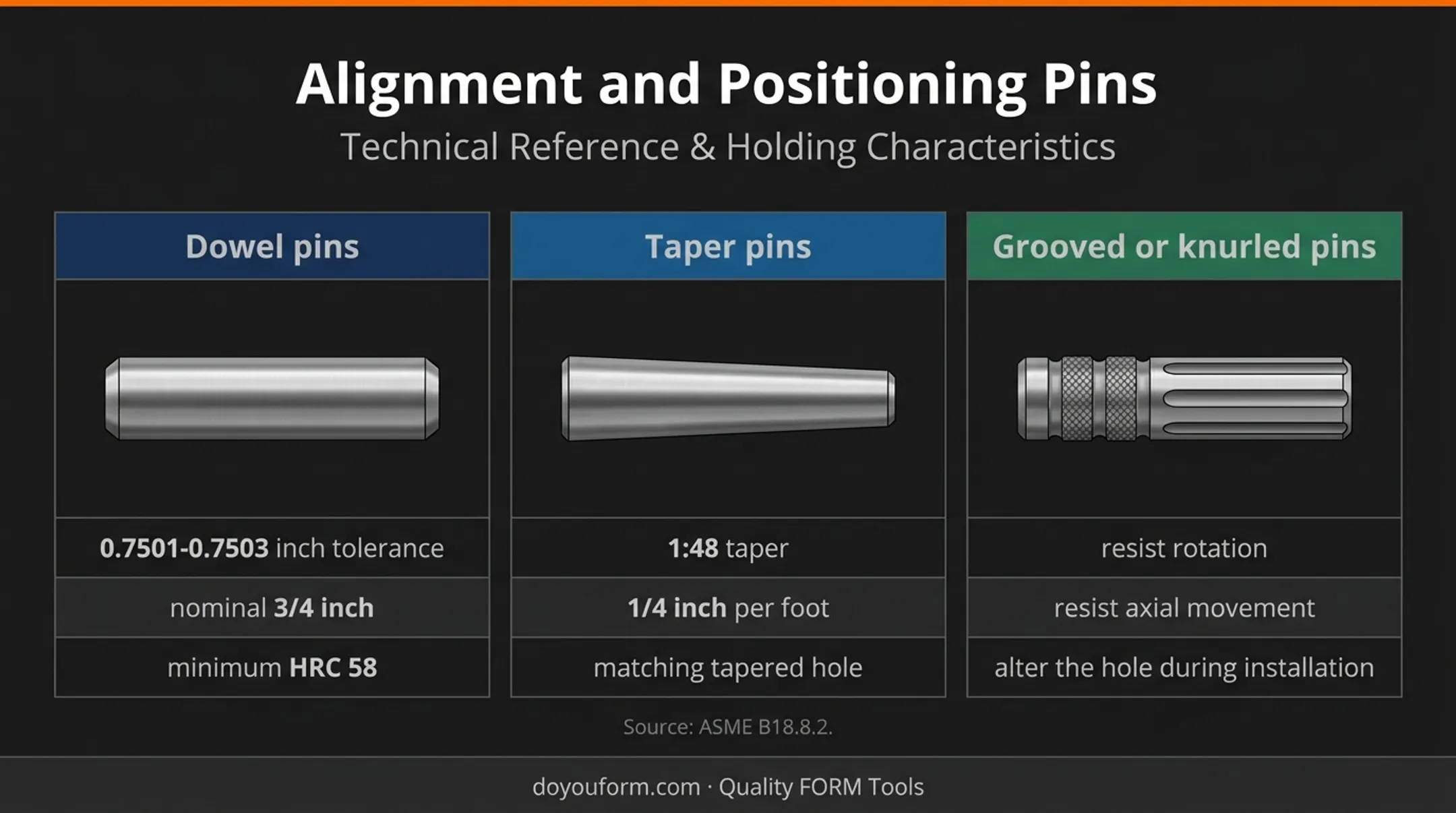

Alignment and Positioning Pins
Dowel pins are solid, cylindrical, and manufactured to tight dimensional control. They're used for repeatable alignment of machine parts, tooling, fixtures, molds, and housings. A dowel pin is not automatically a substitute for a structural bolt: it locates parts, it doesn't clamp them.
For reference, one alloy-steel dowel under ASME B18.8.2 specifies a diameter tolerance as tight as 0.7501-0.7503 inches for a nominal 3/4-inch pin, with a minimum hardness of HRC 58.
Taper pins have a tapered body that creates a progressively tighter fit as it seats into a matching tapered hole. A common inch taper runs 1:48, or 1/4 inch per foot, which simplifies both accurate positioning and later removal, provided the hole was reamed to match. Skip that step, and the pin won't seat correctly.
Grooved or knurled pins use surface features — longitudinal grooves or a knurled texture — to increase grip and resist rotation or axial movement. These features alter the hole during installation, which means they may not suit an assembly that needs precision reassembly later.
Pivoting and Joint Pins
Clevis pins feature a headed shank with a cross-hole near the opposite end for a retainer. They're commonly paired with a cotter pin or similar retaining device, which makes them well-suited to linkages that must pivot or be serviced regularly. ASME B18.8.1 covers clevis pins across a diameter range of 3/16 to 2 inches.
Keep these three terms distinct:
- Clevis pin – the pin itself
- Clevis or forked joint – the yoke-shaped bracket the pin passes through
- Secondary retainer – whatever keeps the pin from sliding out (cotter, clip, ring)
Treating these as one part invites confusion during procurement and repair.
Retaining and Locking Pins
Cotter or split pins use a bent-leg design to secure slotted nuts, clevis pins, and similar components against withdrawal. ASME B18.8.1 covers a diameter range of 1/32 to 3/4 inch for these. Once bent for installation, they're generally replaced rather than reused — bending fatigues the legs.
Lynch, hairpin, and wire-lock pins all provide retention but differ in mechanism:
- Lynch pins use a locking ring around the shaft end
- Hairpin cotters clip through a cross-hole and are designed to be reusable, unlike conventional bent-leg cotters
- Wire-lock pins include their own attached wire retainer
These suit agricultural equipment, shafts, and assemblies where tool-light removal matters.
Hitch, anchor, and bent pins retain detachable components such as implements, brackets, trailers, or structural members. The pin alone isn't the full story. Specify it alongside its clip, ring, or latch as a complete retention system.
An "anchor pin" isn't one universal geometry either. It can mean a dowel-style locator or a spring-attachment point, so state the actual function rather than relying on the name alone.
Spring and Interference-Fit Pins
Slotted, roll, or coiled spring pins compress elastically on insertion and press outward against the hole walls. This makes them economical for general assembly, vibration resistance, and space-constrained applications where a headed pin won't fit.
Slotted and coiled designs aren't identical:
- Slotted pins have a single axial opening and a C-shaped cross-section
- Coiled pins are wound from material and flex differently under dynamic loading
ISO 8752 covers heavy-duty slotted straight pins, while ISO 8750 covers standard-duty coiled pins. Check these before assuming "roll pin" is a complete spec.
Trade-offs to weigh:
- Installation force required (higher than a clearance-fit pin)
- Hole preparation tolerance — too loose and retention drops off
- Possible fatigue under repeated cycling
- Inspection difficulty, since the pin sits flush in the hole
- Correct diameter and material selection for the actual load
Quick-Release and Adjustable Pins
Detent or ball-lock pins use a spring-loaded ball mechanism that retracts on insertion and projects again once seated. Carr Lane's detent pin design explicitly notes it's not positive-locking. Spring force holds it, but a strong enough pull can overcome that. That's fine for a jig that's adjusted often, but worth confirming for anything where accidental withdrawal is a safety concern.
Snap, spring-latch, T-handle, and L-handle pins add a handle or latching feature for faster manual operation. The trade-off is added space, cost, or exposure to accidental actuation. A button-actuated ball-lock pin, by contrast, stays positively locked until the button is pressed, a meaningfully different level of security than a plain detent pin.
Before you finalize any quick-release pin, confirm the lock engages fully and sits where it can't be bumped or triggered by accident.
Quick comparison across families:
| Pin Type | Primary Function | Retention Method | Removal Ease | Precision Needed |
|---|---|---|---|---|
| Dowel | Alignment | Interference fit | Difficult (by design) | High |
| Taper | Positioning | Wedge fit | Moderate | High |
| Clevis | Pivoting | Secondary retainer | Easy with retainer removed | Moderate |
| Cotter/Split | Retention | Bent legs | Single-use typically | Low |
| Coiled/Slotted Spring | Interference retention | Radial spring force | Moderate (tooling helps) | Moderate |
| Detent/Ball-Lock | Quick release | Spring-loaded ball | Very easy | Low |

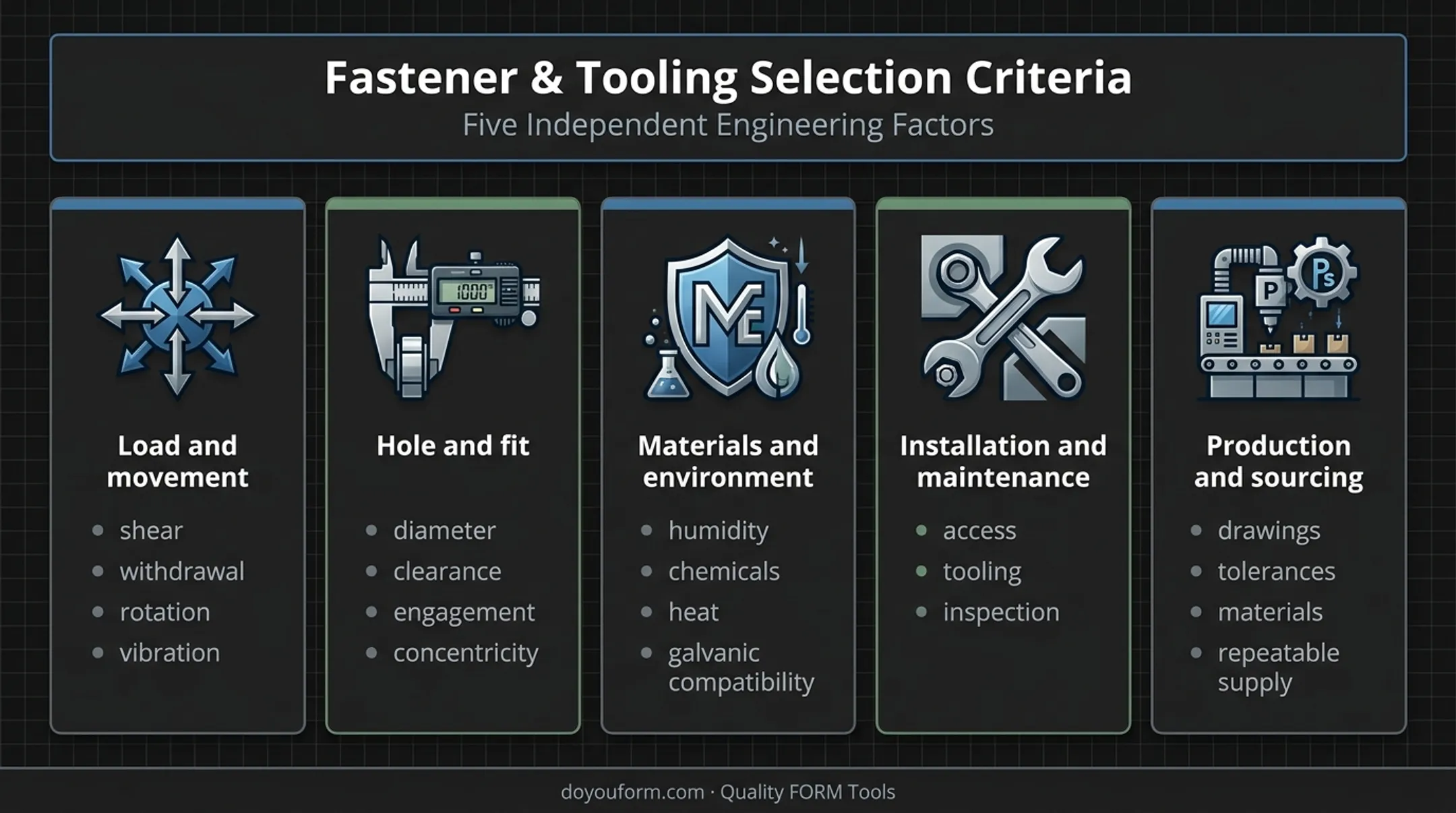

How to Choose the Right Pin Fastener
The right pin depends on the joint's function and operating conditions, not on the pin's name or how simple it looks on a shelf.
Load and Movement Requirements
Start by identifying what the joint actually experiences: shear, axial withdrawal, rotation, impact, vibration, or repeated cycling. Then determine the pin's job: does it align parts, permit pivoting, prevent rotation, hold a detachable component, or provide temporary positioning?
For safety-critical loads, don't rely on informal strength comparisons between pin types. SPIROL's design guide publishes different minimum double-shear capacities depending on coiled-pin duty and material. Figures from one product don't transfer to another. Pull manufacturer data and get engineering review involved.
Hole, Fit, and Dimensional Requirements
Nominal diameter, hole diameter, clearance or interference fit, engagement length, concentricity, and access for drilling or reaming all matter here. Dowel and taper pins generally demand tighter, more controlled hole preparation than retaining or quick-release pins. Evaluate the pin, hole, retainer, and surrounding material together. A strong pin in a poorly prepared hole still leads to local deformation and premature wear.
Materials and Operating Environment
Common material choices include:
- Carbon or alloy steel – strength and cost efficiency for general applications
- Stainless steel – corrosion resistance for washdown, marine, or outdoor exposure
- Aluminum or brass – lighter weight, non-sparking, or non-magnetic requirements
Consider humidity, chemical exposure, outdoor conditions, heat, contamination, and galvanic compatibility between the pin and surrounding materials. A stainless pin in an aluminum housing, for instance, can set up galvanic corrosion over time if that pairing isn't accounted for.
Installation, Removal, and Maintenance
Some pins go in by hand. Others need a hammer and pin punch, a press, or specialized tooling. Think through whether the assembly needs frequent access, whether gloves or tight clearance affect handling, and whether a visible locking feature adds value for a technician working quickly.
During inspection, check for:
- Bending or mushrooming at the pin ends
- Wear, corrosion, or looseness at the hole interface
- Damaged clips or retainers
- Deformation of the mating hole itself
Production and Sourcing Requirements
An off-the-shelf pin works fine for a standard repair. A production run is a different conversation, one that usually calls for drawings, controlled tolerances, specific materials, and repeatable supply.
Manufacturers running fastener-forming, stamping, or forging operations often need more than just the pin itself. They need the dies, punches, fixtures, or replacement machine parts that produce those pins in volume.
Quality FORM Tools works with fastener and wire-forming shops on exactly this kind of tooling: cold header tooling, stamped or forged replacement parts, and precision-machined components made to print. If you're scaling a pin design into production, bring a print, material spec, quantity, and application details.
What to Check Before Finalizing a Pin Fastener
A few habits catch most specification mistakes before they reach the shop floor:
- Don't over-specify. Skip the most complex or expensive pin if a simpler design meets the load, access, retention, and maintenance requirements.
- Don't select on diameter alone. Verify hole fit, engagement length, surrounding material, retainer, and actual load direction together.
- Know what's reusable. A reusable quick-release pin and a single-use retainer like a bent-leg cotter are not interchangeable maintenance items.
- Confirm the full spec. Material, coating, corrosion resistance, dimensional tolerance, installation tools, inspection access, and replacement availability should all be documented.
- Escalate for critical applications. Safety-critical, high-cycle, high-temperature, or custom jobs need drawing review, applicable standards, supplier documentation, and validation testing before production release.
Conclusion
Pin fasteners cover a wide range of jobs: alignment, pivoting, retention, interference fitting, and quick-release connections across industrial equipment and manufacturing assemblies. Dowel, taper, clevis, cotter, spring, grooved, quick-release, lynch, hitch, and handle pins each serve a distinct mechanical purpose. None of them are drop-in substitutes for each other.
Match the pin to the load, movement, hole condition, environment, maintenance routine, and production volume. Most of the common failure points never show up.
If your operation needs custom tooling or replacement components to produce pins or fasteners at scale, reach out to Quality FORM Tools with your specifications. A print, material, and quantity go a long way toward a useful quote.
Frequently Asked Questions
What are pin fasteners?
Pin fasteners are unthreaded components used to align, join, retain, position, or allow movement between mechanical parts. Unlike bolts and screws, they don't rely on threaded clamping force to hold an assembly together.
What are the different types of pin fasteners?
Main categories include dowel, taper, clevis, cotter, spring (slotted or coiled), grooved, quick-release, detent, lynch, hitch, and handle pins. Each is built around a different retention or movement mechanism.
What are pin fasteners used for?
They're used for aligning parts, supporting pivoting joints, retaining nuts or shafts, securing detachable equipment, resisting vibration, and enabling quick-release access on frequently serviced machinery.
What can I use to hold a pin in place?
Common retainers include cotter pins, hairpin or lynch clips, wire locks, spring-loaded balls, snap rings, and washers. The right choice depends on the pin type and how often it needs removal.
What are anchor pins used for?
Anchor pins secure or locate components, brackets, fixtures, structural members, or equipment in a prepared hole. The right design depends on load, substrate, removability, and environmental exposure.
What are pin clips called?
Common terms include cotter pins, split pins, hairpin cotters, retaining clips, lynch pins, and wire-lock clips. Naming varies by manufacturer and application, so confirm the exact hardware specified.
